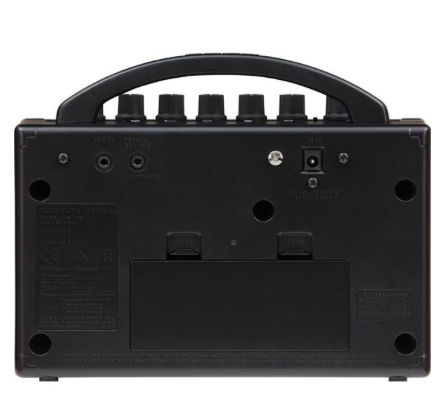

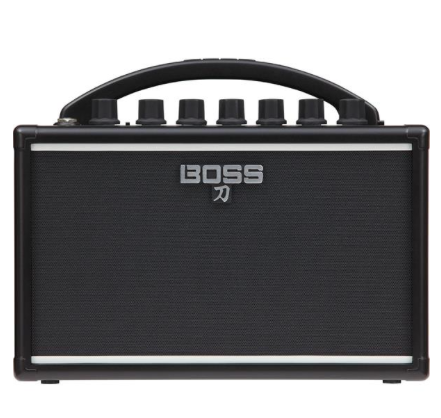

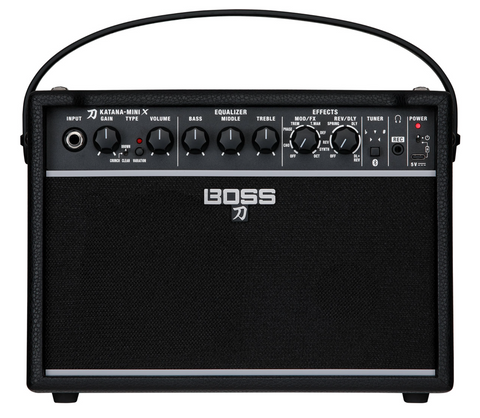

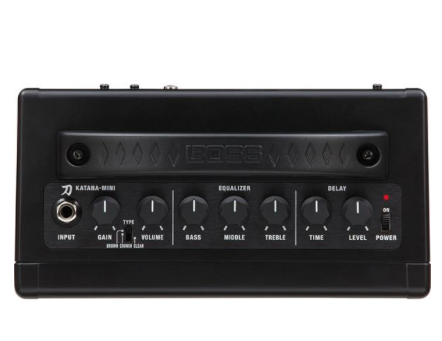

Katana-Mini X delivers acclaimed Katana tones in a fun and inspiring amp for daily practice and jamming. Evolving on the features of the popular Katana-Mini, it offers six versatile analog sound options and two simultaneous effects, housed in a robust wood cabinet for a bigger and fuller guitar experience. Katana-Mini X also provides many enhancements to energize your playing sessions, including an onboard tuner, front-facing panel controls, an internal rechargeable battery, and onboard Bluetooth® for streaming music from your smartphone.
Standard Features
Inspiring Katana tone in a 10-watt mini amp
Multi-stage analog gain circuit developed with the acclaimed BOSS Tube Logic approach
Rich, full sound with a robust wood cabinet and a custom 5-inch speaker
Three versatile amp types: Brown, Crunch, and Clean
Three variations for each amp type, including a flat-response variation for acoustic-electric guitar and bass
Three-band analog tone stack for smooth sound adjustment
Two independent effect sections with 10 total effect types to choose from
Intuitive panel with front-facing controls
Guitar/bass tuner with panel indicators
Wirelessly stream audio from a mobile device via onboard Bluetooth
Dedicated output with cabinet simulation and stereo effects for headphone practice and recording
Rechargeable battery with up to 10 hours of continuous playing time*
USB-C® jack for charging (USB Type-C to Type-A charging cable included)
*Actual battery life will vary depending on the usage conditions.
Specs
Rated Power Output: 10 W
Nominal Input Level: INPUT: -10 dBu (1 M ohm)
Speaker: 12 cm (5 inches)
Controls:
POWER switch
TYPE switch
VARIATION button
GAIN knob
VOLUME knob
[EQUALIZER]
BASS knob
MIDDLE knob
TREBLE knob
[EFFECTS]
MOD/FX knob
REV/DLY knob
[TUNER/Bluetooth]
TUNER/Bluetooth button
Indicators: POWER, VARIATION, TUNER/Bluetooth
Connectors: INPUT jack: 1/4-inch phone type, PHONES/REC jack: Stereo miniature phone type, 5 V (DC IN) port: USB Type-C(R)
Bluetooth: Profile Support: A2DP (Audio)
Power Supply: Rechargeable nickel-metal hydride battery
Current Draw: 1500 mA
Expected battery life under continuous use: Approximately 10 hours
*These figures will vary depending on the actual conditions of use.Battery charging timeApproximately 3 hours *To charge the unit, use the USB port of a computer or a commercially available USB power supply adaptor (5 V, 2 A or higher).USB Type-C(R) to USB Type-A cable for charging
With Katana Gen 3, the acclaimed BOSS stage amplifier series evolves to take your guitar ambitions to the next level. New Tube Logic enhancements enrich the core platform with even greater sound, feel, and response, including an expressive Pushed amp character that edge-of-breakup fans will love. The BOSS Tone Studio app has also been updated, making your remote amp and effects editing workflow more intuitive than ever. Loaded with inspiring tone tools and diverse connectivity options, Katana Gen 3 is your indispensable centerpiece for studio recording, live performance, and daily practice.

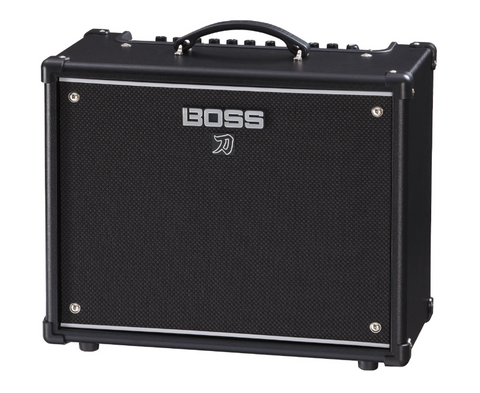

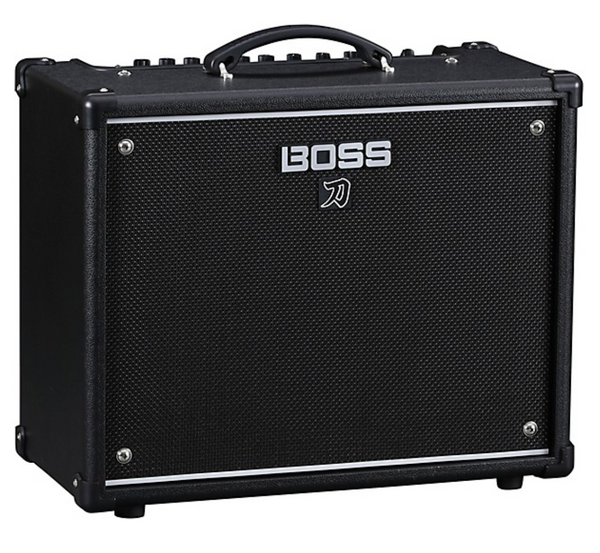

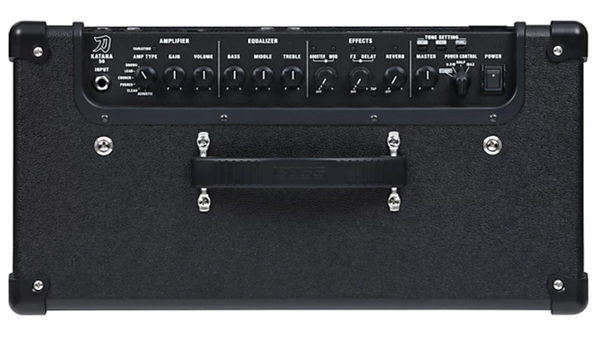

The Katana-50 Gen 3 model strikes the perfect balance of punch and portability, offering 50 watts of Class AB power in a compact 1x12 combo.
Specs
Rated Power Output:50 W
Nominal Input Level: INPUT: -10 dBu (1 M ohms), AUX IN: -10 dBu (20 k ohms)
Speaker: 30 cm (12 inches) x 1
Controls:
POWER switch
MASTER knob
POWER CONTROL switch (STANDBY, 0.5 W, HALF, MAX)
[AMPLIFIER] VARIATION button AMP TYPE switch (ACOUSTIC, CLEAN, PUSHED, CRUNCH, LEAD, BROWN) GAIN knob VOLUME knob
[EQUALIZER] BASS knob MIDDLE knob TREBLE knob
[EFFECT] BOOSTER button MOD button FX button DELAY button REVERB button TAP button BOOSTER knob MOD knob FX knob DELAY knob REVERB knob
[TONE SETTING] CH1 button CH2 button PANEL button
Indicators:
VARIATION
BOOSTER
MOD
FX
DELAY
REVERB
TAP
CH1
CH2
PANEL
Connectors:
INPUT jack: 1/4-inch phone type
POWER AMP IN jack: 1/4-inch phone type
STEREO PHONES jack: Stereo 1/4-inch phone type
CTL CH1/CH2 SOLO jack: 1/4-inch TRS phone type
EXP PEDAL jack: 1/4-inch TRS phone type
AUX IN jack: Stereo miniature phone type
USB port: USB C type
BLUETOOTH ADAPTOR SLOT: Bluetooth® Audio MIDI Dual Adaptor
AC IN jack
Power Consumption: 47 W
Accessories: Owner's manual, Power cord
Options (sold separately):
Footswitch: BOSS FS-5L, BOSS FS-6, BOSS FS-7
Expression pedal: Roland EV-5, BOSS EV-30, BOSS FV-500L, BOSS FV-500H
With Katana Gen 3, the acclaimed BOSS stage amplifier series evolves to take your guitar ambitions to the next level. New Tube Logic enhancements enrich the core platform with even greater sound, feel, and response, including an expressive Pushed amp character that edge-of-breakup fans will love. The BOSS Tone Studio app has also been updated, making your remote amp and effects editing workflow more intuitive than ever. Loaded with inspiring tone tools and diverse connectivity options, Katana Gen 3 is your indispensable centerpiece for studio recording, live performance, and daily practice.

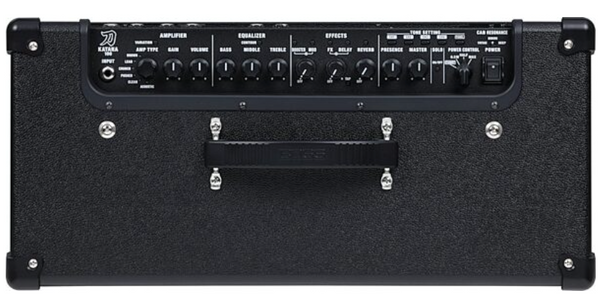

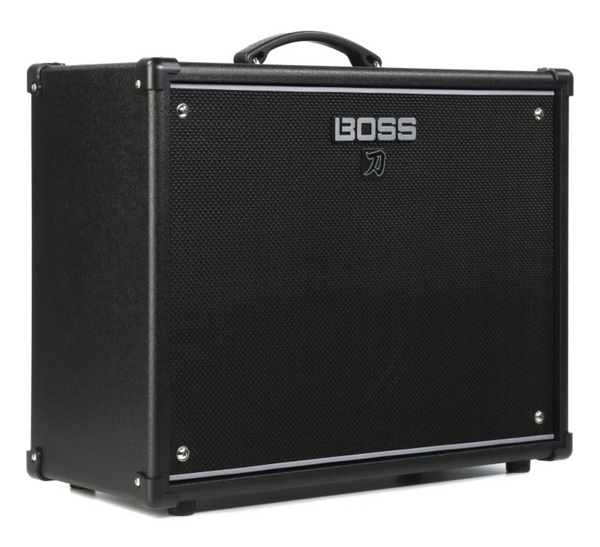

The Katana-100/212 Gen 3 model projects rich, venue-filling sound with 100 watts of Class AB power and two custom 12-inch speakers.
MAIN FEATURES
Third-generation Katana amplifier with evolved Tube Logic sound and expressiveness
Stage-ready 100-watt combo amp with two custom 12-inch speakers
Six amp characters—including the newly developed Pushed type—plus a selectable variation for each
Five independent effects sections: Booster, Mod, FX, Delay, and Reverb
Three-way Contour for shaping the overall tonal color
Three Cabinet Resonance options: Vintage, Modern, and Deep
Eight Tone Setting memories for storing all amp and effect settings
Power Control for achieving cranked-amp tone and response at low volumes
Updated BOSS Tone Studio app (Windows/macOS) for remote editing from a computer or mobile device
Download and share Katana sounds on BOSS Tone Exchange
Compatible with sounds created on previous stage-class Katana models
SPECIFICATIONS
Rated Power Output: 100 W
Nominal Input Level: INPUT: -10 dBu (1 M ohms), AUX IN: -10 dBu (20 k ohms), RETURN IN: -10 dBu (100 k ohms)
Speaker: 30 cm (12 inches) x 2
Controls: POWER switch, PRESENCE knob, MASTER knob, SOLO button, POWER CONTROL switch (STANDBY, 0.5 W, HALF, MAX), CAB RESONANCE switch (VINTAGE, MODERN, DEEP)
[AMPLIFIER] VARIATION button AMP TYPE switch (ACOUSTIC, CLEAN, PUSHED, CRUNCH, LEAD, BROWN) GAIN knob VOLUME knob
[STEREO EXPAND] STEREO EXPAND switchIndicatorsVARIATION ACOUSTIC CLEAN PUSHED CRUNCH LEAD BROWN CONTOUR BOOSTER MOD FX DELAY REVERB TAP SOLO CH1 CH2 CH3 CH4 PANEL
Connectors INPUT jack: 1/4-inch phone type POWER AMP IN jack: 1/4-inch phone type LINE OUT jack: 1/4-inch phone type SEND jack: 1/4-inch phone type RETURN jack: 1/4-inch phone type STEREO PHONES jack: Stereo 1/4-inch phone type EXP PEDAL jack: 1/4-inch TRS phone type GA-FC/CTL CH1/CH2 SOLO jack: 1/4-inch TRS phone type AUX IN jack: Stereo miniature phone type USB port: USB C type BLUETOOTH ADAPTOR SLOT: Bluetooth® Audio MIDI Dual Adaptor AC IN jack
Power Consumption:77 W
Accessories: Owner's manual Power cord GA-FC sticker
Options (sold separately)Footswitch: BOSS FS-5L, BOSS FS-6, BOSS FS-7 Expression pedal: Roland EV-5, BOSS EV-30, BOSS FV-500L, BOSS FV-500H GA FOOT CONTROLLER (GA-FC,GA-FC EX) Bluetooth® Audio MIDI Dual Adaptor (Model BT-DUAL) Amplifier Stand: BAS-1

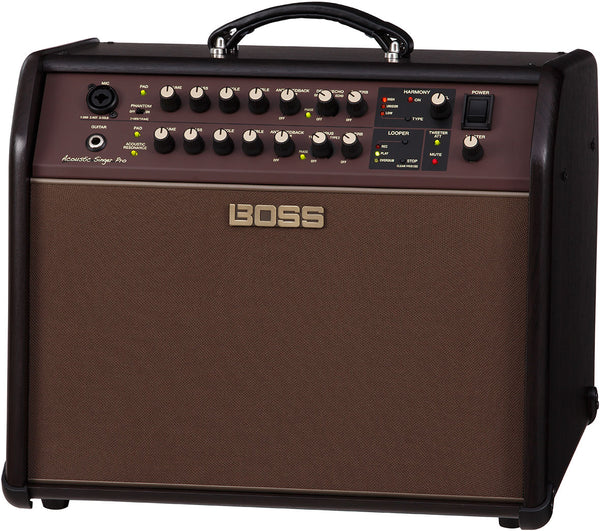

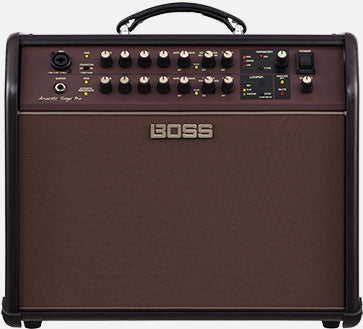

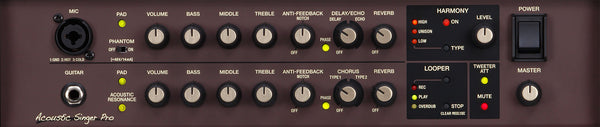

The Acoustic Singer Pro takes the acoustic stage amp to new levels of sound quality and creative versatility. Incorporating BOSS’s latest advancements in amplifier research, this compact powerhouse produces rich, vibrant sound with unmatched punch and clarity. Independent channels are provided for acoustic guitar and vocal, and each is equipped with discrete analog input circuits and three-band EQ for studio-quality sound. And with additional features such as Acoustic Resonance, looping, automatic vocal harmonies, effects, and much more, the Acoustic Singer Pro gives acoustic musicians everything they need to deliver inspiring and impactful live performances.
Model: ACS-PRO
Professional acoustic amplifier with premium sound and features
120–watt bi-amp design with custom-designed 8-inch woofer and dome tweeter
Dual channels with discrete analog input electronics and three-band EQ
Dedicated guitar channel with Acoustic Resonance to restore natural tone to stage guitars with piezo pickups
Mic channel with phantom power and ¼-inch/XLR combo input for connecting a vocal/guitar microphone or second instrument source
Chorus effect on guitar channel, delay/echo effect on mic channel, and independent reverb on both channels
Harmony function automatically creates smooth and accurate vocal harmonies via real-time key/chord analysis of the guitar input
Built-in looper for practicing, developing ideas, and enhancing live performances
Independent anti-feedback controls on each channel
Dual XLR DI jacks assignable to outputting individual channels (direct or post-effects) or both channels mixed together
USB output for direct recording to a computer
Remote control of looper, harmony, and effects supported with various BOSS footswitch models

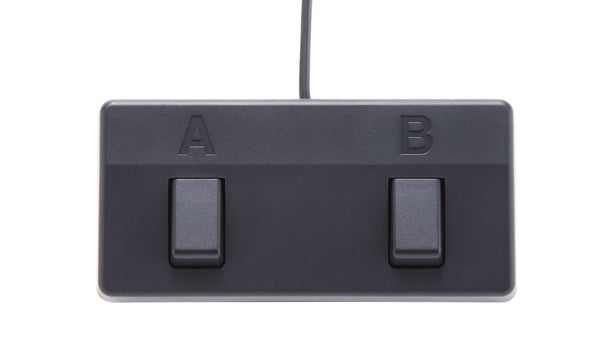

One dual footswitch included for looper and harmony control
SPECIFICATIONS
Rated Power Output:
120 W (Woofer: 100 W, Tweeter: 20 W)
Nominal Input Level:
MIC INPUT: -33 dBu (2.5 k ohms)
GUITAR INPUT: -10 dBu (5 M ohms)
AUX INPUT: -8 dBu (10 k ohms)
Speaker:
20 cm (8 inches) Woofer x 1, 2.5 cm (1 inch) Dome Tweeter x 1
Controls:
POWER switch
MASTER knob
TWEETER ATT button
MUTE button
[MIC]
PAD button
PHANTOM switch
VOLUME knob
BASS knob
MIDDLE knob
TREBLE knob
ANTI-FEEDBACK knob
PHASE button
DELAY/ECHO knob
REVERB knob
[GUITAR]
PAD button
ACOUSTIC RESONANCE button
VOLUME knob
BASS knob
MIDDLE knob
TREBLE knob
ANTI-FEEDBACK knob
PHASE button
CHORUS knob
REVERB knob
[HARMONY]
ON button
TYPE button
LEVEL knob
[LOOPER]
LOOPER button
STOP/CLEAR button
[AUX]
LEVEL knob
[DI/LINE OUT]
MIC/MIX: OUT SELECT switch
GUITAR/MIX: OUT SELECT switch
Indicators:
TWEETER ATT
MUTE
[MIC]
PAD
PHASE
[GUITAR]
PAD
ACOUSTIC RESONANCE
PAHSE
[HARMONY]
ON
HIGH
UNISON
LOW
[LOOPER]
REC
PLAY
OVERDUB

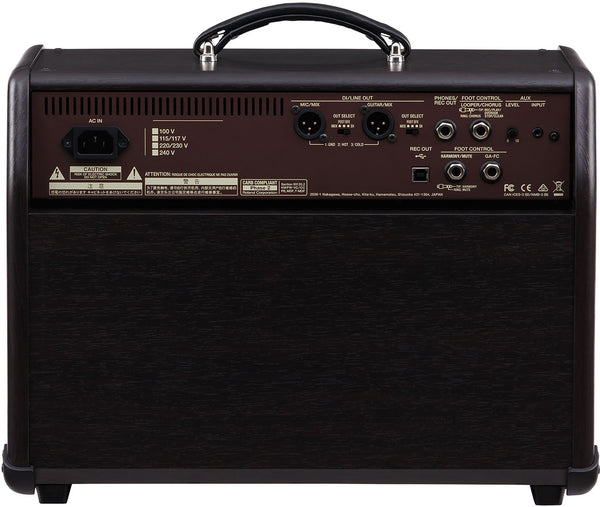

Connectors:
MIC jack: Combo type (XLR, 1/4-inch TRS phone type)
GUITAR jack: 1/4-inch phone type
AUX IN jack: Stereo miniature phone type
PHONES/REC OUT jack: Stereo 1/4-inch phone type
DI/LINE OUT MIC/MIX jack: XLR type
DI/LINE OUT GUITAR/MIX jack: XLR type
FOOT CONTROL LOOPER/CHORUS jack: 1/4-inch TRS phone type
FOOT CONTROL HARMONY/MUTE jack: 1/4-inch TRS phone type
Get rich tone in a lightweight package that's purpose-built to make the most of the Katana-Head.

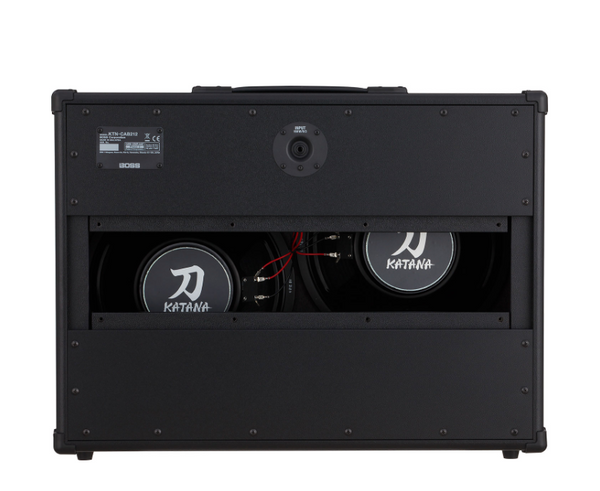

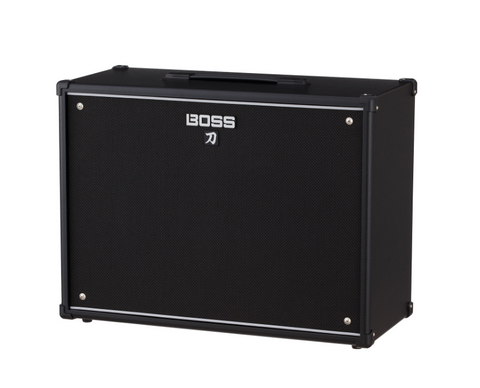

The versatile BOSS Katana Cabinet 212 is a companion cabinet for the popular Katana-Head guitar amplifier. BOSS’s special design provides enhanced bass response and rugged durability while keeping the weight down for easy mobility. The cabinet comes loaded with two custom 12-inch speakers that deliver powerful, punchy sound with rich, full bottom end, offering exceptional performance for tones from super-clean to ultra-heavy. And with the detachable back panel section, you can easily go from a tight and focused closed-back stack tone to the spacious open-back sound of a classic combo.
FEATURES
Specially designed companion speaker cabinet for the 100-watt Katana-Head amplifier
Delivers maximum tonal performance and rugged durability with reduced weight
Rigid construction for big bottom end and tight, punchy response
Detachable back panel section for closed-back and open-back tones from one cab
SPECIFICATIONS
Power handling: 150W
Speakers: 2x12 custom
Cabinet impedance: 8 ohms
Additional rubber feet for using in a vertical configuration

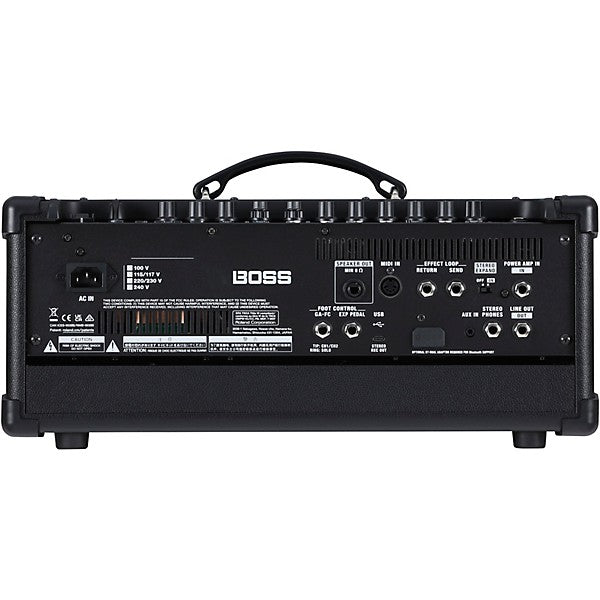

Turn your attention to the rear of the amplifier head and you'll notice quite a few connective possibilities. For instance, you'll see the speaker output right alongside the headphones/recording output. This gives you the ability to direct your sound to cabinets, headphones, and recording devices with a minimal amount of maneuvering. Additionally, a line out jack allows you to route line-level signal to mixers and PAs. An effects loop affords you the opportunity to use outboard gear, and an auxiliary input jack lets you play audio from compatible players through the amplifier head.
But wait, there's more! For external control, there are two different footswitch inputs, one for channel selection/expression pedals, and one specifically tailored to the all-encompassing GA-FC foot controller. Should you wish to control the amplifier through MIDI messaging, you can do so via the dedicated MIDI input.
Built-In Monitor Speaker
The amp's built-in 5" speaker lets you check tones and practice without having to connect to a cabinet
5 Distinct Amp Characters
The amp offers five amp characters with tones ranging from organic vintage to modern high gain; Clean is natural and transparent, Crunch offers a small amount of grit, Lead has a wide gain range to suit many styles, Brown delivers a refined high-gain tone, and the Acoustic character provides a tonality geared toward acoustic/electric guitars
Pedalboard Sounds without the Pedalboard
Via BOSS's Tone Central, you can choose from 55 effects to load 15 different modules into the amp at any one time, using three of them simultaneously; four Tone Settings let you store custom amp and effects setups for instant recall, and you can always jump to the current panel settings at the touch of a button
Extensive Footswitching Possibilities
External control is possible with multiple inputs for optional footswitches, expression pedals, and MIDI devices, as well as a dedicated input for the GA-FC foot controller
Intuitive Operation
Dedicated knobs for multiple gain stages, the three-band EQ, and presence control allow you to dial in tones by ear, just as you would with a standard tube amp; essential effects parameters are adjusted with a simple knob twist, and Tone Setting memories can be stored with a brief button hold
Power Control
A Power Control selector lets you reduce wattage, allowing you to lower the volume for small stages and home-playing without sacrificing tone
Connection Options
The speaker output allows you to connect to eight or 16 Ohm cabs, while you can also send a simultaneous direct feed to PAs, mixers, and recording interfaces via the line output, which provides the mic'd up tone of the Katana in all of its power, fullness, and dynamics; a dedicated effects loop can also be utilized to loop in outboard gear
Computer Connectivity
You can send mix-ready sound to your DAW via the USB port, recording directly to your computer without having to take an analog DI
MIDI Input
A MIDI input jack enables seamless integration with external effects and MIDI switching devices like the BOSS ES-8 and ES-5
Tone Control & Tone Studio
The Katana gives you access to Tone Central and Tone Studio; Tone Central provides a plethora of free amp and effect setups created by seasoned professionals and downloadable by you, while Tone Studio gives you a convenient way to organize your Katana presets for different gigs, recordings, and practice sessions
Notable Features

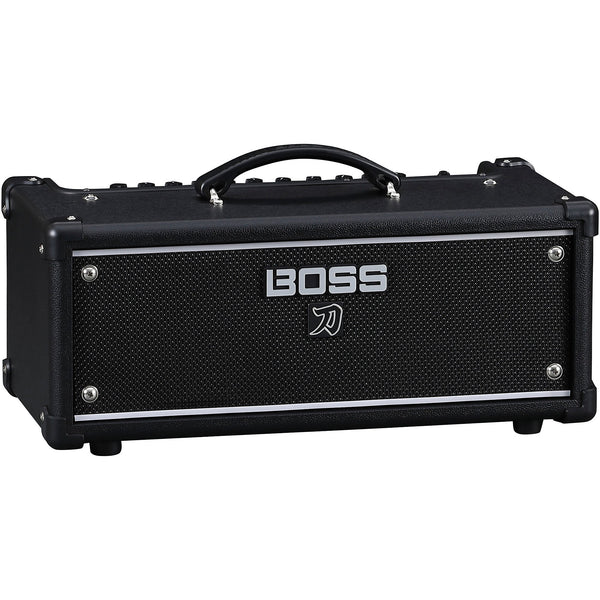

100W amplifier head
Five distinct amp characters: Clean, Crunch, Lead, Brown (derived from the Waza amp), and Acoustic (for acoustic/electric guitars)
Choose from 55 customizable effects with BOSS Tone Studio editor software
Store 15 different effects on board, with three effects available at once
Dedicated gain, EQ, presence, and effects controls for adjusting sounds quickly
Four Tone Setting memories for storing and recalling all amp and effect settings
Power Control for achieving cranked-up tones at low volumes
Integrated 5-inch monitor speaker for practice without an external cab
Line Out and USB jacks provide mix-ready direct tones
MIDI In for Tone Setting selection and effects on/off from a MIDI foot controller
Preset effects available at the BOSS Tone Central website
