Pro Audio

+ Quick Shop

AKG D12VR Reference Kick Drum Microphone AKG $ 603.00 $ 755.09

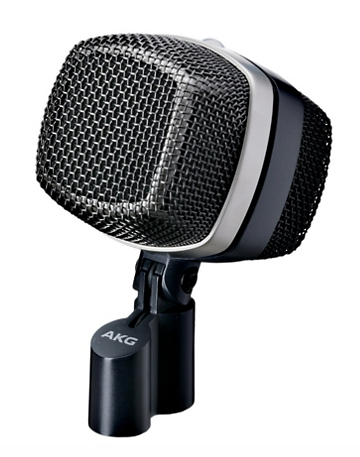

AKG D12VR Reference Kick Drum Microphone

AKG

$ 603.00 $ 755.09

The D12 VR is a large-diaphragm cardioid dynamic microphone. Designed specifically for kick-drum recording applications, the microphone has a thin diaphragm to enhance the low frequency performance. Its predecessors have been the industry standard in kick drum mics for decades. The D12 and subsequently the D12E and the D112 have been the choice of drummers and the live sound engineers who love them since 1950.

Without phantom power, the microphone delivers the pure character of the sound source. With phantom power enabled, one of three switchable active-filter presets can be used to quickly adapt the microphone response to suit the desired kick-drum sound. The filter setting can be controlled using a switch on the microphone body. In this mode the output level is also reduced by 10 dB automatically.

Check it out. The latest version of a classic. It has retained the attributes of the original but taken advantage of modern innovations. Vintage and modern have just met up, and they have done so in front of the kick drum head.

D12VR Large-Diaphragm Cardioid Dynamic Kick Drum Mic

Type: dynamic pressure gradient transducer
Polar pattern: cardioid
Frequency range: 17 - 17000 Hz (±2 dB)
Sensitivity: 1,2 mV/Pa ± -58 dBV (at 1000 Hz passive)
Max. SPL: 164 dB SPL (for 0,5 % THD)
Impedance: <200 ohms (at 1000 Hz)
Recommended load impedance: >1000 ohms
Environment temperature range: -10 C - +70 C
relative humidity at +20 C: 90 %
Connector: three-pin male standard XLR
Finish front grille: glossy galvanized nickel matte,
rear grille: matte black paint
Dimensions: 125 mm x 101 mm x 66 mm (4.9" x 3.9" x 2.6")
Net weight: 500 g (1.1 lbs)

View full product details »

+ Quick Shop

AKG K99 Perception High Performance Headphones AKG $ 79.00 $ 119.00

+ Quick Shop

AKG Perception 45 Instrumental Set Wireless System AKG $ 249.00 $ 379.00

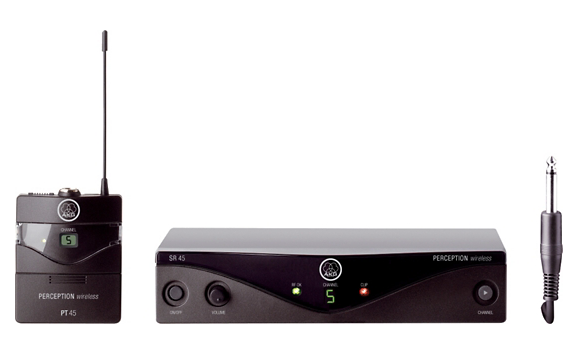

AKG Perception 45 Instrumental Set Wireless System

AKG

$ 249.00 $ 379.00

The Perception Wireless Instrumental Set comprises an SR 45 receiver and PT 45 bodypack transmitter, the smallest and lightest transmitter in its class. It can be used with many AKG miniature microphones, and the battery compartment cover doubles as a convenient tool for setting input gain for the application at hand.

The system comes complete with a universal power supply with US/UK/EU adapter, MKG L cable with ¼" jack plug and mini XLR connector, and one AA size dry battery.

In combination with the C 519 ML (sold separately) also suitable for wind instruments.

SR 45 Stationary Receiver
The SR 45 Stationary Receiver delivers a diversity system, professional XLR and Jack outputs, and the SMPS solution. The audio level and squelch threshold are adjustable on the receiver. It is a stationary receiver for use with all transmitters of the Perception wireless system.

The SR 45 operates within a switching bandwidth of up to 30 MHz in the 500 to 560 MHz UHF carrier frequency range and offers up to 8 selectable carrier frequencies.

PT 45 bodypack transmitter
The PT 45 bodypack transmitter lets you use both dynamic microphones and condenser microphones operating on a supply voltage of approx. 4 V. Naturally you may also connect an electric guitar, electric bass or keytar.

The PT 45 operates within a switching bandwidth of up to 30 MHz in the 500 to 560 MHz UHF carrier frequency range and offers up to 8 selectable carrier frequencies.

Consumer Alert (for US users)
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: The system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device.

Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888- CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

A wireless system ideal for an exceptionally wide range of applications.

FEATURES

30 MHz selection bandwidth (depending on local frequency plans)
8 hours of operation with a single AA size battery
Compatible with all AKG MicroMics
Low battery indicator
Smallest and lightest bodypack transmitter in its class
Complete with MKG L cable for direct connection to electric guitar or bass
IncludedPT 45 bodypack transmitterAA batteryMKG L cableSR 45 receiverSMPS switched mode power supplyGuarantee cardFrequency tableManual supplement sheet

Order a wireless system that faithfully reproduces the sound of your favorite instrument.

SPECIFICATIONS

Perception Wireless Instrumental Set

SR 45 Stationary Receiver
Carrier frequency range: 500 - 560 MHz
Modulation: FM
Audio bandwidth: 40 - 20,000 Hz
T.H.D. at 1 kHz: typ. 0.8%
Signal/noise ratio: typ. 105 dB(A)
Squelch threshold: 100 to -70 dBm adjustable
Audio outputs: Balanced XLR and unbalanced 1/4" (6.3 mm) jack: adjustable from mic to line level. Output level at rated deviation: 500 mV RMS
Dimensions: 7.87" x 7.48" x 1.73", (200 x 190 x 44 mm)
Net weight: 12.69 oz, (360 g)
PT 45 bodypack transmitter
Carrier frequency range: 500 - 560 MHz
Modulation: FM
Audio bandwidth: 40 - 20,000 Hz
T.H.D. at 1 kHz: typ. 0.8%
Signal/noise ratio: typ. 105 dB(A)
RF output: 10 mW
Power requirement: 1x 1.5 V AA size battery
Battery life: 10 hours
Dimensions: 2.36 " x 2.91" x 1.18", (60 x 74 x 30 mm)
Net weight: 2.11 oz, (60 g)
