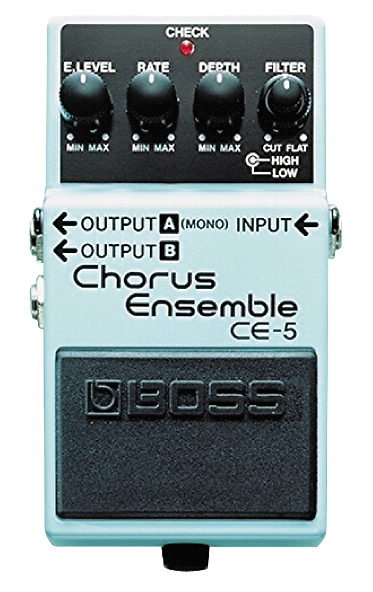

Boss CE-5 Chorus Ensemble Pedal

THE ORIGINAL CHORUS

The CE-5 Chorus Ensemble is BOSS' ultimate compact chorus pedal, covering a wide frequency range and featuring high- and low-cut filters. This lets users create any kind of chorus effect--from a mild, natural chorus to the clear and penetrating stereo chorus effect popular in contemporary music.

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered Bypass
• Controls: High Filter/ Low Filter knob, Depth knob, Rate knob, E.Level knob, Pedal Switch
• Indicator: CHECK indicator (Used for indication of check battery)
• Connectors: Input Jack: 1/4-inch phone type, Output A/B jack: 1/4-inch phone type, DC in Jack
• Power Supply: Carbon-Zinc battery (9V, 6F22) or Alkaline Battery (9 V, 6LR61), AC Adaptor (PSA series: Sold Separately)
• Current Draw: 25 mA
• Expected Battery Life under Continuous: Carbon - Approx. 11.5 hours, Alkaline - Approx. 25.5 hours
• Accessories: Owner's Manual
