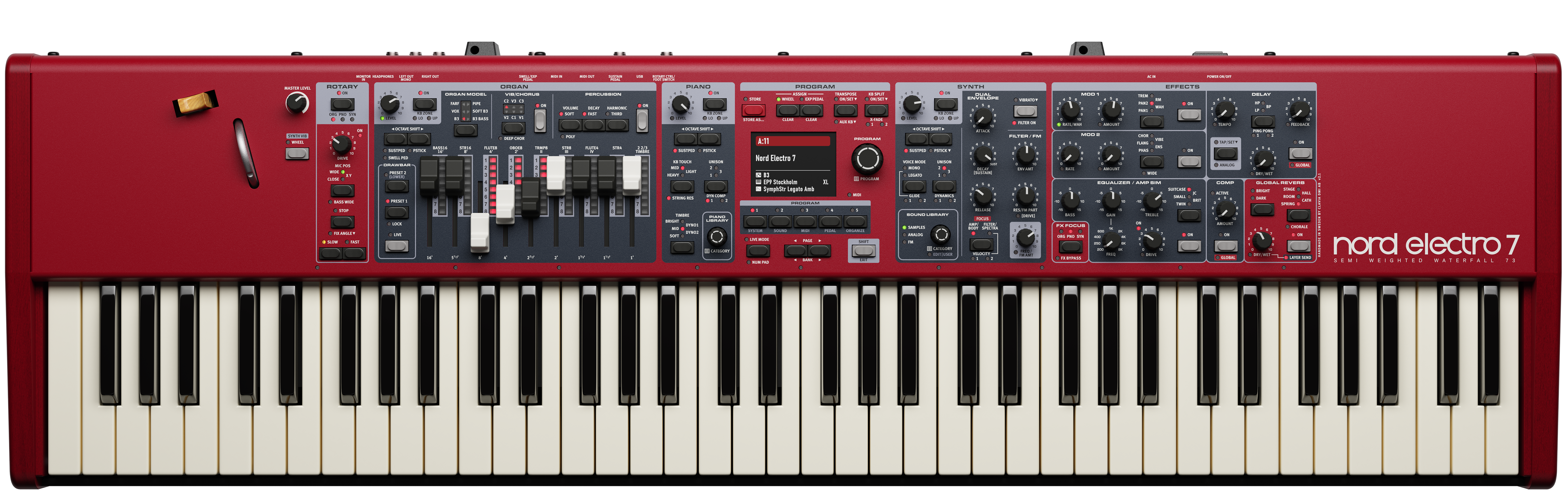

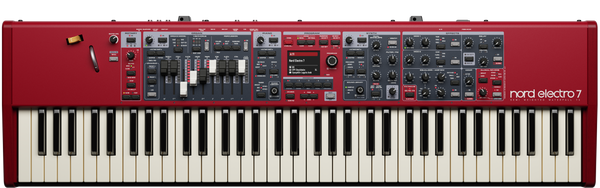

Nord Electro 7 73-Key Keyboard

The Nord Electro 7 elevates the Electro series with a powerful new Synth Section, dedicated per-section effects and a refined panel design with a high-resolution color display. Combining our latest piano features with the Organ and Rotary Speaker from the acclaimed Nord Organ 3, the Nord Electro 7 offers exceptional versatility in a lightweight, stage-ready instrument.

General

• Color display

• Organ, Piano and Synth sound sections

• Seamless Transitions

• Split Point Crossfades

• Pitch Stick and Modulation Wheel on 73 and HP models

• 20 banks with 25 programs - 500 locations

• Live Mode: 5 Live programs

• Selectable split point with LED indication (9 locations)

• Organize for programs

• Global Transpose: +/- 6 semitones

• Global Fine-tune: +/- 50 Cents

• Program Transpose: +/- 6 semitones

• MIDI over USB

• 61/73-key semi weighted waterfall keybed

• 73-key Triple sensor Kawai Hammer Action Portable keybed

• External keyboard feature (Aux KB)

• Expression Pedal Assign, enabling pedal control of Synth Filter and many effect parameters

Keybed

• Nord Electro 7 61: 61-key (5 octaves, C-C) Semi Weighted Waterfall keyboard

• Nord Electro 7 73: 73-key (6 octaves, E-E) Semi Weighted Waterfall keyboard

• Nord Electro 7 HP: 73-key (6 octaves, E-E) Triple sensor Kawai Hammer Action Portable keyboard

Organ

• Models: B3, B3+Bass, Soft B3, Vox, Farfisa and Pipe model with full polyphony

• B3 Percussion Controls with Poly option

• Vibrato/Chorus with B3 Deep mode

• Adjustable percussion level and percussion decay

• 3 Tonewheel modes: select the level of "vintage" desired

• 2 Organ manual Presets and Live Drawbars

• Physical Drawbars with LED indicators

• Mount for Half-Moon Switch on Electro 7 61/73

Piano

• Categories: Grand, Upright, Electric, Digital/Layer, Clav/Harpsichord and Misc/Mallet

• Pianos can be added, replaced and organized using the Nord Sound Manager

• String Resonance

• Timbre settings - individually tailored for acoustic, electric and clavinet sounds

• 3 KB Touch settings

• Dynamic Compression for even sound level without altering the tonal character

• Unison with 3 amount options

• 120 Voices polyphony for Piano Library sounds

Synth

• Synthesis: Sample, Analog and FM synthesis

• Samples can be added, replaced and organized using the Nord Sound Manager

• Preset library for Analog and FM sound

• Amp and Filter/FM ADR/ASR envelopes

• Velocity and Amount controls for Filter/FM envelope

• Low Pass Filter with Cutoff and Resonance controls for Analog and Sample sounds

• Amount and Partial controls for FM

• Mono, Legato and Glide options

• Unison with 3 amount options

• 3 Dynamics/amp velocity options

• Vibrato with adjustable rate, amount and delay

• Synth Vibrato button for real time control

• 30+ voice polyphony

Rotary Speaker

• Rotary Speaker emulation from Nord Organ 3

• Mic Position Options: Close, Wide and XY

• Bass Wide (stereo) option

• Dedicated tube Drive control

• Fix Angle option for Stop position (user adjustable)

Effects

• Dedicated Effects for Organ, Piano and Synth

• FX Focus with FX Bypass option

• Expression Pedal can be assigned to most effect parameters

Mod 1

• Effects: Pan1 (Soft), Pan2 (Hard), Tremolo, Wah and Ring Modulator

• Controls: Dedicated Rate and Amount Controls

Mod 2

• Effects: Phaser, Flanger, Chorus, Vibe and Ensemble

• Wide option for stereo width

• Controls: Dedicated Rate and Amount Controls

Equalizer/Amp Simulations

• Amp Models: Twin, Small, Suitcase, JC and Brit

• Drive

• Three band EQ with sweepable mid. +/- 15 dB gain/attenuation

Delay

• Tempo with Tap function

• Feedback and Dry/Wet controls

• Feedback Filter Options: Low Pass, High Pass and Band Pass

• Ping Pong with 3 amount options

• Analog mode

• Global mode

Compressor

• Amount control

• Global option

Global Reverb

• Reverb Types: Spring, Room, Stage, Hall and Cathedral

• Spring Reverb placed before Rotary Speaker

• Chorale option for all reverb types

• Bright/Dark options

• Dry/Wet control with Layer Send mode for individual control of reverb level per section

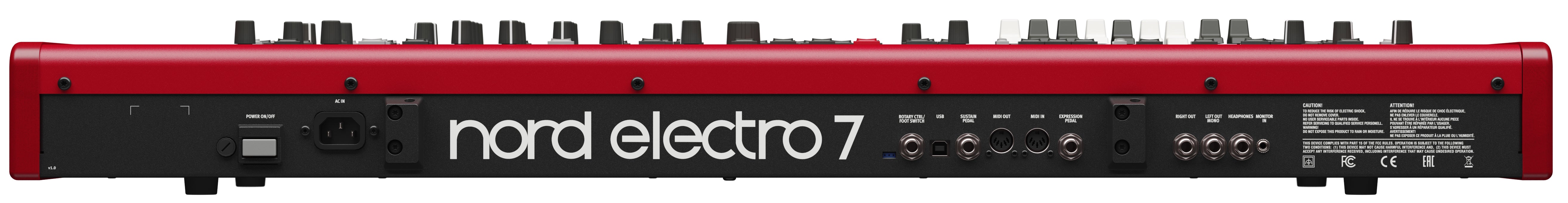

Connections

• Audio Outputs: 2 Audio outputs L & R - ¼", 6,35 mm jacks, unbalanced

• Monitor Input: 1 Monitor input - 1/8", 3,5 mm stereo jack

• Headphone Output: 1 Headphone output - ¼", 6,35 mm stereo jack

• Expression Pedal Input: 1 Expression pedal input - ¼", 6,35 mm TRS stereo jack

• Sustain Pedal: ¼", 6,35 mm jack. Compatible with Nord Sustain Pedal 2 (continuous sensor), Nord Triple Pedal 1 and switch type pedals

• Rotary Control/Foot Switch: ¼", 6,35 mm jack. Use a momentary pedal or a switch type pedal

• MIDI In: 5 pin DIN connectors

• MIDI Out: 5 pin DIN connectors

• USB: Type B connector for USB MIDI, Software Update and Sound Transfer

• Power: Power Cord with IEC C14 connector

Included Accessories

• User Manual

• Power cord

Dimensions

• Nord Electro 7 73: 1066 mm (42") x 104 mm (4.1") x 294 mm (11.6")

Weight

• Nord Electro 7 73: 9.5 kg (20.9 lbs)
