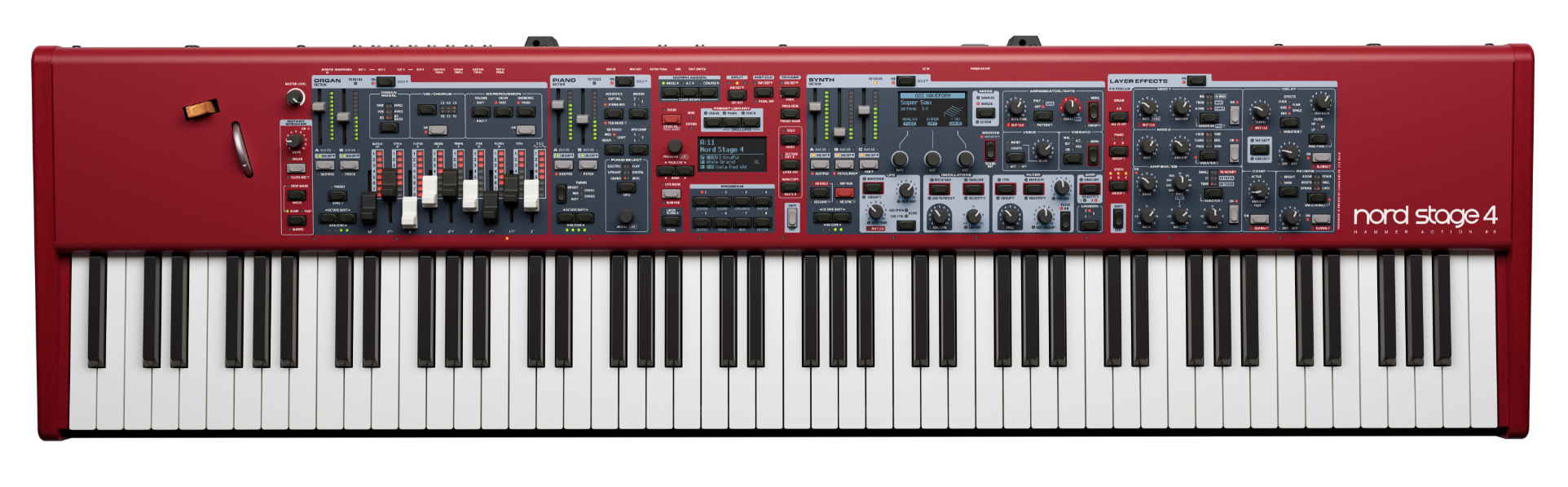

Nord Stage 4 88-Key Keyboard

$ 5,999.00

The latest generation of our iconic flagship series – the Nord Stage 4 features a new intuitive panel design, a premium triple sensor keybed, and complete effect sections for each layer. With significant enhancements to our award-winning technologies - the Stage 4 sets a new standard for live performance stage keyboards.

Highlight features

Performance/General

New panel design for exceptional overview and flexibility
Premium Triple sensor keybed
New preset library
Dedicated LED faders for each Layer

Synth section

Nord Wave 2 Synth Engine
3 independent Synth Layers
Doubled sample memory
Enhanced samples with Tru-Vibrato, Unison and Round Robin
Extensive real time controls
Advanced Arpeggiator with Polyphonic, Gate and Pattern modes
Extern mode for advanced MIDI control

Piano section

Enhanced collection of Uprights, Grands,EPs and more
Dynamic Compression
Unison feature
Creative Timbre presets
Advanced String Resonance
Dynamic Pedal Noise

Effects

Dedicated Effect section per Layer
New Variations for Modulation, Amp, Delay and Reverb Effects
New Spring, Booth and Cathedral Reverb
New Spin effect
New Pump effect
New Flam and Space Delay

Organ section

Award-winning organ simulations of B3, Vox/Farfisa and Pipe Organ models
Physical drawbars with LED indicators
Enhanced Rotary Speaker Drive
Drawbar Live mode
New B3 Bass mode
Enhanced model 122 Vintage Rotary Speaker with new drive including close or distant mic position

Specs

General

Master Level Control
Wooden Pitch Stick
Modulation Wheel
512 Programs - 8 Banks with 8 Pages each. Each Page has 8 Program locations
Preset Library with Organ, Piano and Synth Presets including effects. 2x64 Organ Preset locations, 2x64 Piano Preset locations, 8x64 Synth Preset locations.
8 Live Programs

2 Individual Layer Scene Setups
3 Morph sources: Modulation Wheel (also controllable by Swell pedal), Control Pedal, Aftertouch
Stereo and Mono output routing options
Programmable Transpose +/- 6 semitones
Master Clock functionality with manual, external and tap-tempo rate control

Internal and MIDI clock source
MIDI over USB functionality
Level control
Aftertouch
Up to 3 Split Points (4 Keyboard Zones) with visual LED indication between zones
3 Split Point width (crossfade) options: Lrg, Sml or Off

Organ Section

Nord C2D B3 Tone wheel Organ simulation
Vox Continental and Farfisa models
2 Digital Pipe Organ models

B3 Bass mode
Physical Drawbars with LED graphs
Preset or Drawbar Live mode

Percussion controls
Vibrato / Chorus control
2 Layers (2-Part Multitimbral)

Piano Section

2 GB memory for Piano sounds
All sounds can be replaced using Nord Sound Manager (Mac/Win)
120 Voice Polyphony
Categories: Grand, Upright, Electric, Digital, Layer and Clav/Harpsichord
3 Selectable Keyboard Touch Curves (Heavy, Medium, Light)

Piano Timbre controls with custom settings for Electric Pianos and Clavinet
String Resonance for acoustic Grand Pianos and Uprights
Selectable Soft Piano Release
Pedal Noise when used with Nord Triple Pedal 1, Nord Triple Pedal 2 or Nord Sustain Pedal 2 on selected acoustic and electric pianos

Dynamic Compression
Unison functionality
2 Layers (2-Part Multitimbral)

Synth Section

Nord Wave 2 Synth Engine with Sample Playback
Dedicated OLED Display for Waveform/Sample selection and parameter editing
1 GB memory for Nord Sample Library
All samples can be replaced using Nord Sound Manager (Mac/Win)
46 Voice polyphony
Oscillator Types: Analog (incl. Super, Noise and Misc waveforms), Digital Waves, FM and Sample
Analog Waveform options: Pure, Shape, Shape Sine, Multi, Super, Sync, Bell, Misc (Noise)

Classic Transistor Ladder Filter (LP M), 12 & 24 dB Low Pass, High Pass, Band Pass and combined Low Pass/Band Pass (LP+BP) filter
Filter Drive: Off, 1, 2 and 3
Filter Tracking: Off, 1/3, 2/3 and Full
3 Unison modes
Vibrato modes controllable from Mod Wheel, Aftertouch and pedal.
Filter envelope (Attack, Decay/Sustain, Release) with Velocity control
Amplitude envelope (Attack, Decay/Sustain, Release) with Velocity control

Oscillator envelope (Attack, Decay/Sustain, Release) with Velocity control
LFO with 5 waveforms/modes: Square, Triangle, Ramp Dn, Ramp Up and Sample & Hold
Advanced Arpeggiator with Arp, Polyphonic and Gate modes
Arpeggiator Patterns for all modes, with Accent and Pan options
LFO and Arpeggiator synchronizable to Master Clock
3 Layers (3-Part Multitimbral)

Effects

Mod 1: Tremolo, Auto Pan, Ring Modulator, Wah-Wah, Auto-Wah, Pump (Sidechain modulation). Variation for each effect
Mod 2: Phaser, Flanger, Vibe, Chorus, Ensemble, Spin. Variation for each effect
Delay with Tempo, Feedback and Mix (Dry/Wet) controls, Ping Pong (stereo taps), Tap-Tempo, Feedback Filter (HP/LP/BP), Feedback Effects with Variations and panel selectable Analog mode.
3 types of Amp/Speaker simulations, Twin, JC and Small. Variation for each model

Filter Mode (HP24/LP24) with Cut-off, Resonance and Mix controls
Tube amp simulation with adjustable overdrive
3-band Equalizer with sweepable mid. EQ ranges: 100 Hz, 200 Hz - 8 kHz and 4 kHz
Rotary Speaker: selectable speed (Stop, Slow and Fast) and separate overdrive

Effect rates/tempo can be synchronized to the Master Clock
Compressor with Fast Mode
Reverb: 6 algorithms (Spring, Booth, Room, Stage, Hall and Cathedral) with Dark/Bright modes and Variation/Chorale options

Connections

4 Assignable Audio Outputs - ¼", 6,35 mm jacks, unbalanced
Stereo Headphone output - ¼", 6,35 mm stereo jack
1 Monitor input - 1/8", 3,5 mm stereo jack
Sustain Pedal - ¼", 6,35 mm jack. Compatible with Nord Sustain Pedal 2 (continuous sensor), Nord Triple Pedal 1 and switch type pedals
Triple Pedal - 5 pin DIN connector. Compatible with Nord Triple Pedal 2

Rotor Pedal - ¼", 6,35 mm jack.
Use a momentary pedal or a switch type pedal.
Organ Swell Pedal - ¼", 6,35 mm TRS stereo jack.
Control Pedal - ¼", 6,35 mm TRS stereo jack.
Foot Switch input - ¼", 6,35 mm jack.
Use a momentary two-button pedal or a single switch type pedal.

MIDI In - 5 pin DIN connectors
MIDI Out - 5 pin DIN connectors
USB - type B connector for USB MIDI, Software Update and Sound Transfer
Power Cord with IEC C14 connector

Included Accessories

Single Pedal 1 included with Stage 4 73 and 88
User Manual
Power cord
USB cord

Dimensions

Nord Stage 4 88:
1282 mm (50.5"), 121 mm (4.7"), 349 mm (13.7")

Nord Stage 4 73:
1069 mm (42"), 121 mm (4.7"), 349 mm (13.7")

Nord Stage 4 Compact:
1066 mm (42"), 104 mm (4,1"), 322 mm (12.7")

Weight

Nord Stage 4 88: 19.6 kg (43.2 lb)
