12” Two-Way Full-Range Main System/Floor Monitor with Wi-Fi
The JBL PRX812W is a full-range speaker designed for main system and floor monitor applications. Featuring a 12”, two-way, bass-reflex design powered by a 1500-watt class-D amplifier, PRX812W delivers incredible volume in a lightweight and compact form factor.
Built-in Wi-Fi for wireless control of your system from anywhere in the venue
Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
Class-leading 1500-watt amplifier delivers ample power to fill your venue
JBL Differential Drive® transducers for higher SPL in a lightweight design
Next-generation JBL neodymium compression drivers
Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through
Intelligent variable-speed fan activates only when needed to reduce noise
Updated tuning delivers flat frequency response and smooth off-axis behavior
Durable wooden cabinets, tour-proven DuraFlex™ finish and dent-resistant 16-gauge grilles
Universal power supply for worldwide compatibility
dbx Type IV™ limiting ensures clear, accurate sound at high volumes
Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance
PRX812W is a compact and versatile speaker in the PRX800 Series with remote Wi-Fi control of onboard DSP EQ parameters. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX812W is a perfect match with a PRX818XLFW subwoofer, offering a high performance self-powered sub/sat system.
The PRX812W is comprised of a 12” Differential Drive® woofer, a 2408H-1, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1500 watt Class-D digital power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
All PRX800 cabinets are built from a combination of 25 mm (on the top and bottom for added rigidity) and 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.
The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.
System Type
Self Powered 12”, two-way, bass-reflex
Maximum SPL Output
135 dB peak
Frequency Range (-10 dB)
Main: 52.6-20k Monitor: 50.3 - 20k
Frequency Response (±3 dB)
Main: 58.1 - 20k Monitor: 59- 20k
Input Connectors
2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
Input Impedance
20K Ohms (balanced), 10K Ohms (unbalanced)
Signal Indicators
Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio
EQ
User selectable presets for Main or Monitor position, Advanced EQ settings available using Wi-Fi and PRX Connect application
Dynamic Control (Input)
dbx Type IV™ limiter circuit
Crossover Frequency
1.850 kHz
Design
Highly efficient Class-D amplifier
Power Rating
1500W (750W x 2)
AC Power Input
100V - 240V ~ 50/60 Hz
LF Driver
1 x JBL 272G 305 mm (12 in) woofer
HF Driver
1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
Coverage Pattern
90° x 50° nominal
Directivity Index (DI)
10.2 dB
Directivity Factor (Q)
10.4
Enclosure
Asymmetrical, 18 mm, plywood
Suspension / Mounting
Dual 36 mm pole socket, 12 x M10 Suspension Points
Transport
1 x injection molded handle with backing cup
Finish
Obsidian DuraFlex™ finish
Grille
Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Dimensions (H x W x D):
599 mm x 385 mm x 341 mm (23.6 in x 15.1 in x 13.4 in)

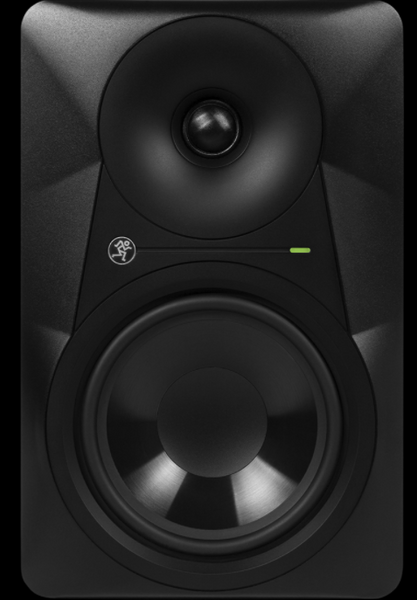

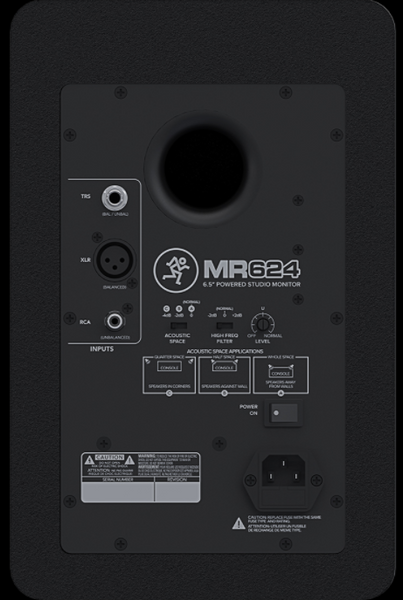

Mackie MR624 6.5" Powered Studio Monitors offer professional performance, clarity and superior mix translation so you can listen with confidence knowing your mix will sound great anywhere.
Drawing from Mackie's extensive studio monitor design experience, MR624 monitors are precision-tuned to stay true to your mix whether it's dialogue, hip hop, rock and beyond. Our proven logarithmic waveguide provides an ultra-wide listening sweet spot and enhanced stereo imaging while the Acoustic Space controls allow you to adjust the frequency response of the monitor to match your studio. The studio monitor inspired by you - MR624 Powered Studio Monitors.
Features:
- Designed for superior mix translation and accuracy for professional results in any studio - Equipped with Mackie's proven logarithmic waveguide design - Ultra-wide dispersion for enhanced stereo imaging and listening sweet spot - Precise acoustic alignment offers incredibly balanced sound across the entire frequency spectrum - 1" silk dome tweeter provides fast transient response for detailed high end and vocal clarity - 6.5" polypropylene woofer delivers responsive, dynamic low frequency response - 65 watts of bi-amplified Class A/B amplification - Frequency response: 38 Hz - 20 kHz - Optimize MR monitors for your mixing environment - Adjustable acoustic space filters maintain flat response in typical placement configurations - HF filter applies boost or cut to compensate for particularly dull or bright sounding rooms - Professional all-wood cabinet design built to last and look great in any studio - Custom designed internal bracing adds stiffness for reduced distortion and enhanced low frequency response - Flexible inputs for simple connection to almost any audio source - Acoustically optimized with sound-tightening acoustic absorption material - Add the companion MRS10 studio subwoofer for powerful, deep low frequency extension perfect for electronic music, hip-hop and more
HIGH-QUALITY STUDIO MONITORS FOR THE UNCOMPROMISING CREATOR
HS Series speakers are the standard in studio monitors, trusted for many years by the world’s top audio engineers, producers, and artists. Now Yamaha has redefined their essence in a compact housing. The HS4 is a powerful tool to help create a wide range of audio content—from music production to video editing—that meets the expectations of creators who have limited space but do not want to compromise on monitoring quality.
High-quality compact studio monitors for the uncompromising creator.
2-way bass-reflex powered speaker with 4.5" cone woofer and 1" dome tweeter
60 Hz - 22 kHz frequency response (-10 dB)
26 W + 26 W output power (Dynamic, RL=6 Ω)
ROOM CONTROL and HIGH TRIM response controls
XLR/TRS Phone (COMBO), RCA, and Stereo Mini inputs
Stereo mini - RCA cable, speaker cable, and anti-slip pad included
Packaging: Pair
Specs
General
Speaker Type: 2-way powered speaker, Bass-reflex type
Packaging: Pair
Acoustic Performance
Frequency Response (-10 dB): 60 Hz – 22 kHz
Frequency Response (-3 dB): 83 Hz – 20 kHz
Crossover: 2.3 kHz
Maximum Output Level (Measured peak, IEC noise @1m): 102 dB SPL
Components
HF Driver: 1" Dome
LF Driver: 4.5" Cone
Nominal Impedance: 6 Ω
Amplification
Output Power:
26 W + 26 W (Dynamic, RL = 6 Ω)
20 W + 20 W (THD 0.1%, 1 kHz, RL = 6 Ω)
Power Consumption: 15 W
Inputs & Outputs
Input Connectors (L Side):
COMBO (XLR/TRS Phone) ×2
RCA ×2
Stereo Mini
Input Connector (R Side): Speaker Input
Output Connectors (L Side):
Headphone
Speaker Output
Input Specifications
Input Sensitivity:
LINE 1 (COMBO): +4 dBu
LINE 2 (RCA, Stereo Mini): -10 dBu (Volume: Maximum)
HS Series cabinets are designed to eliminate unwanted resonance and increase the accuracy of sound reproduction to their extreme limit. The enclosures are constructed from a dense MDF with a damped acoustic response. HS Series engineers also employed a traditional three-way mitered-joint technique. Common to architectural design, this construction firmly anchors the corners of the enclosure to improve durability and eliminate unwanted resonance that can influence overall sound
Noise Reduction Technology
Speaker port design can greatly influence the clarity of overall sound. Often a vortex at the either end of the port can generate air vibrations inside of the port, causing unwanted noise. By adopting a noise reduction technology that incorporates an analysis of a visual representation of the sound, Yamaha's engineers are able to control and reduce the vortex. Through this analysis Yamaha has arrived at a port design that reduces noise up to 6dB
Controls and Connectivity
HS Series full-range models feature two response controls with settings that allow them to adapt to the surface acoustics of rooms of varying shape and size. ROOM CONTROL allows you to attenuate the unnatural, exaggerated low-end that can often occur when speakers are placed next to walls, while HIGH TRIM allows for more flexible control of high frequency response. For inputs, HS full-range speakers can accommodate a range of balanced and unbalanced sources such as mixers, keyboards and audio interfaces with XLR and TRS phone jacks

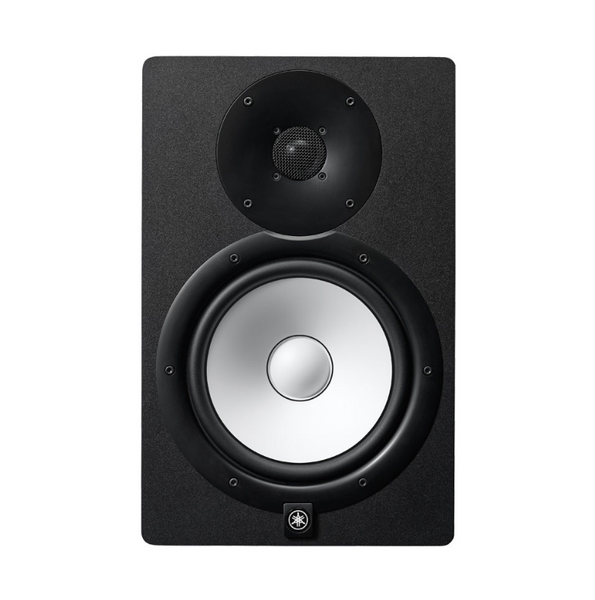

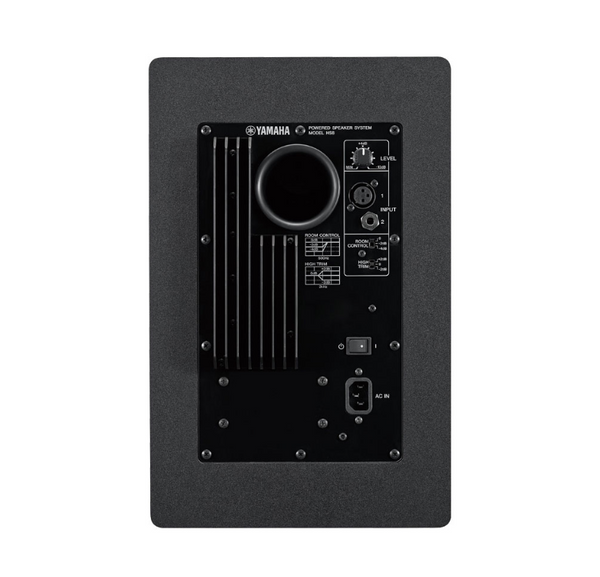

The Yamaha HS8 is a 2-way bass-reflex bi-amplified nearfield studio monitor with 8" cone woofer and 1" dome tweeter. The Yamaha HS-Series have the inherited universal mix-translation legacy and distinctive white cones of the industry-respected NS-10's, designed to deliver your mixes with transparent honesty. Room control and frequency response switches allow custom tailoring of the monitor's response to give you accurate performance in any environment.
High-performance Speakers and Mounting System The elegant white-cone speakers used in the HS-series monitors deliver superlative audio performance that is further enhanced by a carefully engineered mounting system. A system of screws and a specially designed mounting ring eliminates spurious vibration and resonance, allowing the speaker to deliver its full sonic potential. Another feature that boosts woofer performance is a magnet selected to produce accurate, solid low-end response. The tweeter frames employ an advanced smooth-contour design that minimizes losses so that high-frequency details come through with remarkable accuracy. The extra thickness of the tweeter frame also minimizes resonance that can interfere with high-end clarity. The overall result is extraordinarily smooth, accurate response throughout the audio spectrum.
The Benefits of Built-in Power and Bi-amplification Powered, bi-amplified monitor speakers simply make the most electrical and sonic sense, and that's why they have become the first choice of sound professionals the world over for near- and mid-field monitoring applications. In addition to the obvious advantage that you don't need separate power amplifiers, the fact that power and speakers are integrated in one unit means that the amplifiers can be perfectly matched to the characteristics of the speaker units used so you get consistently superior performance with any source in just about any listening environment. Bi-amplification means that separate power amplifiers are used to drive the low-mid and high-frequency speaker units, and this eliminates interaction between the units as well as the response and phase anomalies introduced by passive crossover networks. Both speaker units can function at optimum performance levels for correspondingly high overall sonic quality.
Large Magnets in an Advanced Magnetic Circuit Design One feature of the HS-series monitors that you'll hear but are not likely to see is the extra large magnets. In combination with an advanced magnetic circuit design these magnets provide a powerful, uniform, tightly controlled flux field that results in exceptionally smooth response and dynamic capability over a wider frequency range.
Portable, Versatile Monitoring for Your Audio Workstation All you really need for top-class stereo production capability is a good audio workstation and a pair of HS-series monitors. A system like this is not only portable and extremely easy to set up anywhere you need it, it can deliver outstanding monitoring performance that will let you get your mixes just right. The response-control features of these monitors let you tweak them for the best response no matter where you set them up.
Serious Surround Production Although stereo is still the most common format for basic music listening, 5.1 surround has become the audio format of choice for today's advanced visual media, and is beginning to be recognized as a superior vehicle for pure musical enjoyment as well. But to properly mix and produce surround sound you need a good 5.1 monitoring system. The HS-series speakers and subwoofer are the perfect choice if you want competitive surround-monitoring performance without having to spend big-studio megabucks to get it.
Optimum Response In Any Room Speaker response can vary greatly depending on the size, shape, and surface acoustics of the room in which they're used, as well as how they're placed within that environment. The HS8 gives you extra room-matching and speaker placement versatility with ROOM CONTROL, MID EQ, and HIGH TRIM response control switches that are specifically designed to compensate for common acoustic deficiencies and monitoring needs. The ROOM CONTROL switch, for example, can be used to compensate for the unnatural low-end exaggeration that usually occurs when speakers are placed close to walls or in corners. The MID EQ switch gives you subtle midrange boost and cut options in addition to flat response, while the HIGH TRIM switch offer the same type of response-tailoring capability for the high frequencies.
