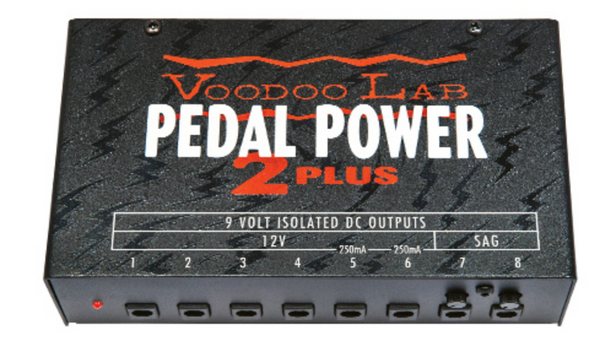

Voodoo Lab Pedal Power 2 Plus Pedalboard Power Supply
$ 199.99
| AMAZING TONE STARTS WITH PEDAL POWER! |
Filter, regulate, isolate, and protect!
Pedal Power® 2 PLUS does it, and does it well, because any less will degrade your pedal’s performance. Players everywhere upgrade to Pedal Power 2 PLUS because it powers what conventional power supplies can’t. Pedal Power 2 PLUS is hand made in the U.S.A., comes complete with cables, detachable AC power cord, a 5-year warranty, and simply makes you sound better!
  After extensive testing for both noise, stability and reliability we have pleasure in recommending the Voodoo Lab Pedal Power 2 PLUS as being suitable for powering our range of stand alone pedals - particularly when multiple effects are in use. The isolated outputs of the Pedal Power 2 PLUS prevent the occurrence of ground loops and the noise level is too low to measure.  -Pete Cornish |
| POWERING PEDALS IS EASY. MAKING THEM SOUND GREAT ISN’T. |
Isolation is more than fixing ground loops.
Ground loops cause hum, and the solution is to break the unwanted ground path. Isolation is the best way to do it. Unlike other power supplies, Pedal Power 2 PLUS isolates EVERY output. This eliminates tone robbing interaction between units. Now you can properly power everything from vintage overdrives to modern digital marvels that others just can’t!
Proprietary balanced transformer makes it possible.
A typical transformer, like those used in a wall wart, creates a large magnetic field that causes hum in any audio path near it. Pedal Power 2 PLUS uses a custom designed, ultra-low noise toroidal transformer, with separate balanced windings for every output. Now even the most sensitive pedals can be dead quiet.
Switching power supplies aren’t for everything.
What’s good for charging a cell phone is NOT good for your pedals. While digital switching power supplies are small and inexpensive, they also generate unpredictable transients and extraneous noise. Pedal Power 2 PLUS uses an audiophile quality linear supply for consistently stable, clean, pure power.
| Pedal Power® 2 PLUS Features |
9/12V (x4) – Standard 9V and 12V Boss ACA
With each one of these four outputs delivering 100mA, you can easily power any 9V battery-operated pedals. Boss pedals that specify the PSA adapter operate at 9V like most other pedals. Boss pedals that require the ACA adapter operate at 12V which can be selected via switches underneath the Pedal Power 2 PLUS. Any one of these outputs can be individually selected to run at 9V or 12V.
9V (x2) – High Current 9V and Line 6 Modelers
These two outputs each deliver 250mA allowing you to run high current draw effects like the Boss DD-20 Giga Delay or Line 6 DL4 Delay Modeler. Via switches underneath the Pedal Power 2 PLUS, these two outputs can be separately configured for regulated (Boss Twin Pedals) or unregulated (Line 6 Modelers) power allowing you to run both units if so desired. These outputs can also power any standard 9V effects as well.
9V (x2) – Standard 9V With Battery Sag Control
These outputs each have an available 100mA of power, but also allow you to SAG the voltage from roughly 4V to 9V. This feature can be enabled via the bottom panel switches. The SAG control is mostly useful for transistor-based fuzz, octavia, and distortion circuits, as most modern opamp designs are minimally affected by variations in supply voltage. We recommend turning SAG off if you’re going to run digital pedals like delay, chorus, and reverb.
18V/24V – Using Custom Cables
All of the outputs on the Pedal Power 2 PLUS (and the original Pedal Power) are completely isolated allowing you to create different voltages. You can run effects like the current MXR Flanger by combining two 9V outputs to create a single 18V supply. By switching two outputs into 12V ACA mode, you can join them together to create a 24V output for powering numerous Electro-Harmonix stompboxes including the Deluxe Memory Man.
|
Pedal Power 2 PLUS Specifications
|
 |
 Input
|
|
| IEC connector: 120V 50/60Hz (North America model) 100V 60Hz (Japan model) 230V 50/60Hz (Europe/Australia model) Model and input power are marked on the bottom of unit.
|
|
|
Output
|
|
| 5.5x2.1mm barrel connectors - center negative Short circuit protected
|
|
||
|

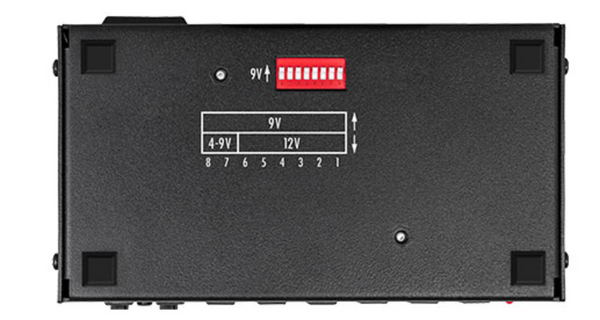

DIP Switch: NORMAL
|
||
|
||
|
Output
|
DC Voltage |
Max current |
|
||
|
1-4 (ACA)
|
9V | 100mA |
|
||
|
5-6 (L6)
|
9V |
250mA |
|
||
|
7-8 (SAG)
|
9V |
100mA |
|
||
|
DIP Switch: ON
|
||
|
||
|
Output
|
DC Voltage |
Max current |
|
||
|
1-4 (ACA)
|
12.3V | 60mA |
|
||
|
5-6 (L6)
|
14.5V / 12V (unregulated) |
50mA / 200mA+ |
|
||
|
7-8 (SAG)
|
Adjustable 4V - 9V |
100mA |
|
|

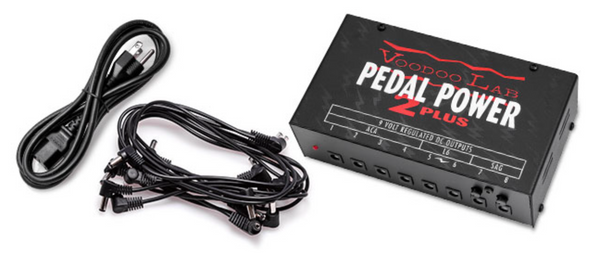

Included Cables
|
|
|
• PPBAR-R (x6) • PPBAR-RS24 (x2) • Replacement cable pack part# PPPK-8 |
|
|
Physical
|
|
| 6" wide x 3.4" deep x 1.8" tall (152 x 86 x 44 mm) Weight: 2 lbs. (0.9 kg)
|
|
|
Special
|
|

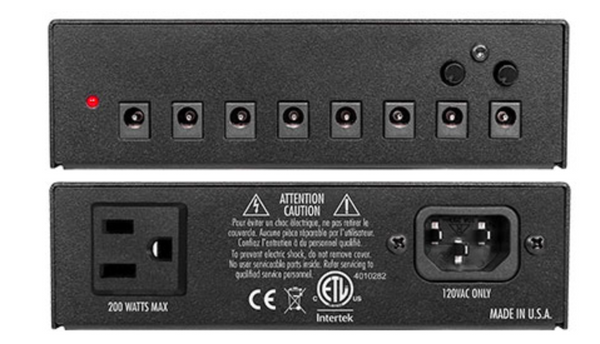

| Toroidal power transformer Rear Courtesy Auxiliary AC outlet, 200 watts max
|
Important!
Pedal Power 2 PLUS is manufactured to operate from a specific supply voltage. There are three different models, which accept 100V, 120V, or 240V mains. All units sold in North America are for 120V only. You cannot operate a 120V Pedal Power using 240V power without the correct step down transformer. The supply voltage is marked on the bottom of the unit.
Short Circuit Protection
Each output on the Pedal Power 2 PLUS is short-circuit protected. This means that if you have a short in a power cable, or one of your pedals malfunctions, PP 2 PLUS will temporarily turn off the power to that pedal. All other outputs will continue to function normally with no long-term damage.

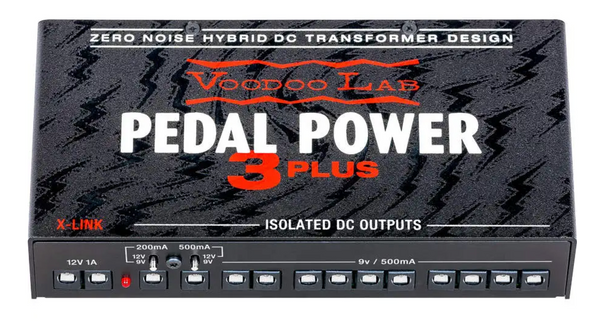

Voodoo Lab Pedal Power 3 Plus Power Supply
$ 279.99 $ 392.00
THE POWER OF GREAT TONE
Pedal Power 3 series is the first lightweight, high current, international voltage power supply to deliver zero-noise performance. Its innovative hybrid DC transformer design features a lightning-fast 80 nanosecond polarity reversal, establishing an ultra-low noise foundation. Linear regulation and computer-optimized exotic filtering components eliminate any trace of noise, setting new benchmarks in industry-leading audiophile-quality power to unveil the hidden sonic potential of any rig. From standard battery-operated stompboxes to modern high-current DSP effects, Pedal Power 3 series combines the best of time-tested analog engineering with cutting-edge technology to ensure any pedal will sound its best.
ALL ISOLATED OUTPUTS
Equipped with twelve galvanically isolated DC outputs, Pedal Power 3 PLUS eliminates ground hum and unwanted interaction between pedals. Each output supplies 9V DC with two featuring a voltage selector switch for 12V DC operation. 18V and 24V pedals can be powered by combining outputs with an optional voltage doubler cable.
POWERFUL
Each Pedal Power 3 PLUS output delivers up to 500mA of current to supply power-hungry modern DSP effects. Audiophile specifications also ensure the musical character of the most sensitive vintage stompboxes is preserved. Each output’s wide spectrum of flexibility means less guesswork when connecting your pedals.
EXPANDABLE
Never run out of outputs. Pedal Power 3 features two X-LINK expansion ports, allowing you to add up to 16 isolated outputs. Simply connect a Pedal Power X4 or X8 to X-LINK to expand your power supply as your pedalboard grows. With 2A of shared current, X-LINK expansion ports can also power other 12V high-current devices like the Neural Quad Cortex® using a standard DC power cable*. No pricey adapters or complex setups taking up valuable isolated outputs are needed.
GOES ANYWHERE
The low-profile, ultra-lightweight design of Pedal Power 3 PLUS easily mounts to any pedalboard, adding an almost undetectable amount of weight. Operating at any input voltage 100V-240VAC, Pedal Power 3 PLUS makes international touring convenient and hassle-free. No voltage converters are needed. Just hit the road, plug in, and rock out.
*IMPORTANT NOTE: Due to the high current draw of the Quad Cortex® (1.8A), the second X-LINK port should remain unused when powering this device.
Pedal Power 3 PLUS Features:
- 12 isolated 500mA DC outputs • 10 x 9V, 2 x Switchable 9V/12V
- X-LINK expansion ports connect Pedal Power X4 and X8 units to add up to 16 isolated outputs
- Powers standard battery operated and high current DSP effects
- 100V-240VAC operation for international touring
- Audiophile-quality power ensures pedals sound and perform their best
- Zero noise hybrid DC transformer design with linear regulation
- Delivers clean, consistent power even with poor AC line conditions
- Ultra-lightweight, low-profile aluminum construction
- Includes DC power cable kit and detachable AC line cable
- Dimensions: 7” x 3.4” x 1.5” (178 x 86 x 38 mm)
- Weight: 1.0 lbs. (450g)
- Hand built in the U.S.A.
Pedal Power 3 PLUS Specifications:
- Inputs: IEC Connector. 100-240VAC Operation
- Outputs: 5.5 x 2.1mm barrel connectors – center negative, Short circuit protected
- Special Features: X-LINK expansion ports (2) for use with Pedal Power X4, X8, or other 12V devices drawing 2A or less.
- Included Cables: Standard polarity DC cable 12-pack (part# PPPK-12)
- Physical Dimensions: 7” x 3.5” x 1.5” (152 x 89 x 38 mm)
- Weight: 0.9 lbs. (450g)
- Warranty: 5-year warranty in North America. Other regions contact your country's distributor for warranty details.
Voodoo Lab Pedal Power X8
$ 169.99
Pedal Power X8 is an ultra-compact high current isolated international voltage power supply that delivers reliable, zero-noise performance for pedals of all types. Its innovative hybrid DC transformer design integrates exotic components, linear regulation, and computer-optimized filtering to establish industry-leading audiophile-quality power. From vintage battery-operated stompboxes to modern high-current DSP effects, Pedal Power X8 combines the best of time-tested analog engineering with cutting-edge technology to ensure any pedal will sound its best.
ALL ISOLATED OUTPUTS
Equipped with eight galvanically isolated 9V DC outputs, Pedal Power X8 eliminates ground hum and unwanted interaction between pedals. Power 18V pedals by combining outputs with an optional voltage doubler cable or adapter.
POWERFUL
Each Pedal Power X8 output delivers up to 500mA of current to supply power-hungry modern DSP effects. Audiophile specifications also ensure the musical character of even the most sensitive vintage stompboxes is preserved. This wide spectrum of flexibility with each output means less guesswork when connecting your pedals.
GOES ANYWHERE
The low-profile, super light Pedal Power X8 is a perfect fit for small to medium-sized travel boards. Operating at any input voltage 100V-240VAC makes international touring convenient and hassle-free. No voltage converters needed. Just hit the road, plug in, and rock out.
EXPANDING PEDAL POWER 3
In addition to serving as a stand-alone power supply, X8 can also power from X-LINK expansion ports, adding eight isolated outputs to a Pedal Power 3 Series power supply.
VooDoo Lab Pedal Switcher Guitar Footswitch
$ 219.99 $ 300.00
On a traditional pedal board, even when the effects are off, your signal still goes through numerous tone-trashing buffers, solid-state switches and patch cables. The Voodoo Lab Pedal Switcher uses 4 true bypass loops to send your signal only to the pedals you're using. Built with the finest gold relays sealed in nitrogen, your tone will stay pure and dynamic no matter what kind or how many guitar effect pedals you use.
With Voodoo Lab Pedal Switcher, you can use all those great classic and modern stompboxes without destroying that pure "straight to amp" sound. Have the freedom to use any pedals you want, and never have to worry that the buffer in your overdrive is killing your vintage fuzz!
Pedal Switcher features 4 instant access switches, buffered and non-buffered inputs, and a TRS insert for putting devices like a volume pedal between effects. Loops can also be used as a mute for silent tuning onstage, and A/B amp switching. Add a Commander and you can control an unlimited number of Pedal Switcher units allowing you to store combinations of pedals. Check out Commander here.
Get the effects you want without trashing your tone!
- 4 True Bypass audio loops
- 4 Instant access on/off switches
- A/B Amp selector (loop 4)
- Loops can be used for signal mute and silent tuning
- TRS Insert (between loops 3&4)
- Programmable presets via Commander
- Fully compatible with Ground Control Pro and GCX Audio Switcher
VooDoo Labs Pedal Power Iso 5 Power Supply
Sold Out
Isolated power supply for pro stage and studio use
Pedal Power ISO 5 is an isolated power supply for powering guitar pedal effects and accessories. It's the ultimate compact solution for smaller pedalboards, rack shelves, or even as an additional power supply for larger boards. With five isolated, filtered and regulated output sections, ISO 5 keeps even the most sensitive vintage and boutique analog pedals dead quiet.
Pedal Power ISO 5 includes a high-current output which will properly power modern digital power-hungry effects like those from Eventide, Line 6, and TC Electronic. There's also a dedicated 18V output for those pedals which need the higher voltage for extra headroom.
Designed to meet the needs of professional users, Pedal Power ISO 5 will provide clean, consistent power, even with the poor AC line conditions often found on stage. Completely isolated output sections eliminate ground loops and unwanted interactions between effects, resulting in lower noise and noticeably improved tone.
Voodoo Lab Pedal Power ISO 5 Power Supply Features
- Five isolated outputs
- Compatible with all battery operated pedals
- Includes high current 9V and 12V outputs, plus dedicated 18V output
- Powers Boss Twin, Eventide, Line 6 modelers, and TC Electronic Nova pedals
- Linear regulation and toroidal transformer for lowest possible noise
- Compact design fits small pedalboards and rack shelves
- Includes cables and detachable AC line cord
- Engineered and handmade in the USA
- 5-year warranty
Short Circuit Protection
Every output on Pedal Power ISO 5 is individually short-circuit protected. This means that if you have a short in a power cable, or one of your pedals malfunctions, ISO 5 will turn off the power to only that pedal. All other outputs will continue to function normally with no long-term damage.
Voodoo Lab Pedal Power ISO 5 Power Supply Specifications
-
Input
- Detachable IEC (computer-type) line cord
- 120V 50/60Hz
-
Outputs
- 5.5x2.1mm barrel connectors center negative (Short circuit protected)
- 9VDC (3) - 100mA
- 9/12VDC - 300mA
- 18VDC - 100mA
-
Included Cables
- 5.5x2.1mm right angle barrel connectors (4)
- 5.5x2.1mm right angle to straight barrel connector (1)
- 5.5x2.5mm right angle red barrel (1)
- 3.5mm right angle mini plug (1)
-
Physical
- 4.9 wide x 3.4 deep x 1.8 inches tall (124 x 86 x 44 mm)
- Weight: 1.24 lbs (0.56 kg)
- Special: Toroidal power transformer
VooDoo Labs Sparkle Drive MOD Guitar Effects Pedal
$ 199.99 $ 260.00
All the tones of the original Sparkle Drive plus three custom mods for punchy and modern to thick, singing lead tones!
The Sparkle Drive MOD overdrive effects pedal from Voodoo Lab delivers all the overdriven sounds of the original Sparkle Drive but with a twist. Using the MOD switch, you can select the stock 808-based circuit or instantly pick from three custom mods. Whether you need more gain, tighter bass response, a more-vocal midrange, or a thick and juicy lead tone, Sparkle Drive MOD gives you the tools to get there.
In Stock mode, you get the classic tube-style midrange grind that's great for blues or for boosting your solos. Mod 1 is the Lead circuit with extra gain, a thick and juicy bottom end, and smooth highs that are perfect for single-note melodies. Mod 2 delivers punchy, mid-cut rhythm tones thata re great for chunky rock power chords and funk. Mod 3 gives you the high-gain treatment with articulate highs and an aggressive bottom end.
Additional features include a unique Clean control that allows you to blend in a boosted direct signal restoring attack and feel. Switching is true bypass via a high-reliability gold-contact relay.
Features
- Create multiple, layered amp sounds - one clean, one overdriven
- Four unique overdrive/distortion circuits: Stock, Lead, Rhythm & High Gain
- 100% clean boost circuit with tons of output
- True-bypass switching via gold-contact relay with LED
- Hand built in the USA
- 5-year warranty
