Fender 62 Deluxe Guitar Amplifier

Known among players as hidden treasures from the early ’60s, Fender “brown panel” amplifiers are prized for bridging the gap between the raw sound of its ’50s-era tweed-covered amps and the sparkling clean tones of its mid-’60s “black panel” amps, with a distinctive sound all their own.

The ’62 Deluxe Amp replicates the sound of those originals with its incredibly warm, woody clean tones and mean overdrive when cranked. Combining that with tube-bias tremolo makes it a true desert-island amplifier. Using two 6V6 output tubes to push 20 watts through a custom-designed Celestion® 12” speaker, the ‘62 Deluxe is the perfect amp for home recording and smaller gigs and an ideal amp for Fender aficionados and collectors everywhere.

• 1962 Deluxe 6G3 circuit with all-tube design
• Two 6V6 output tubes, three 12AX7 preamp tubes, one GZ34 rectifier tube
• Single 12” Celestion® Custom Design speaker
• Lush tube-bias tremolo
• Fender ’60s brown Nubtex cabinet covering with wheat grille cloth and brown leather handle

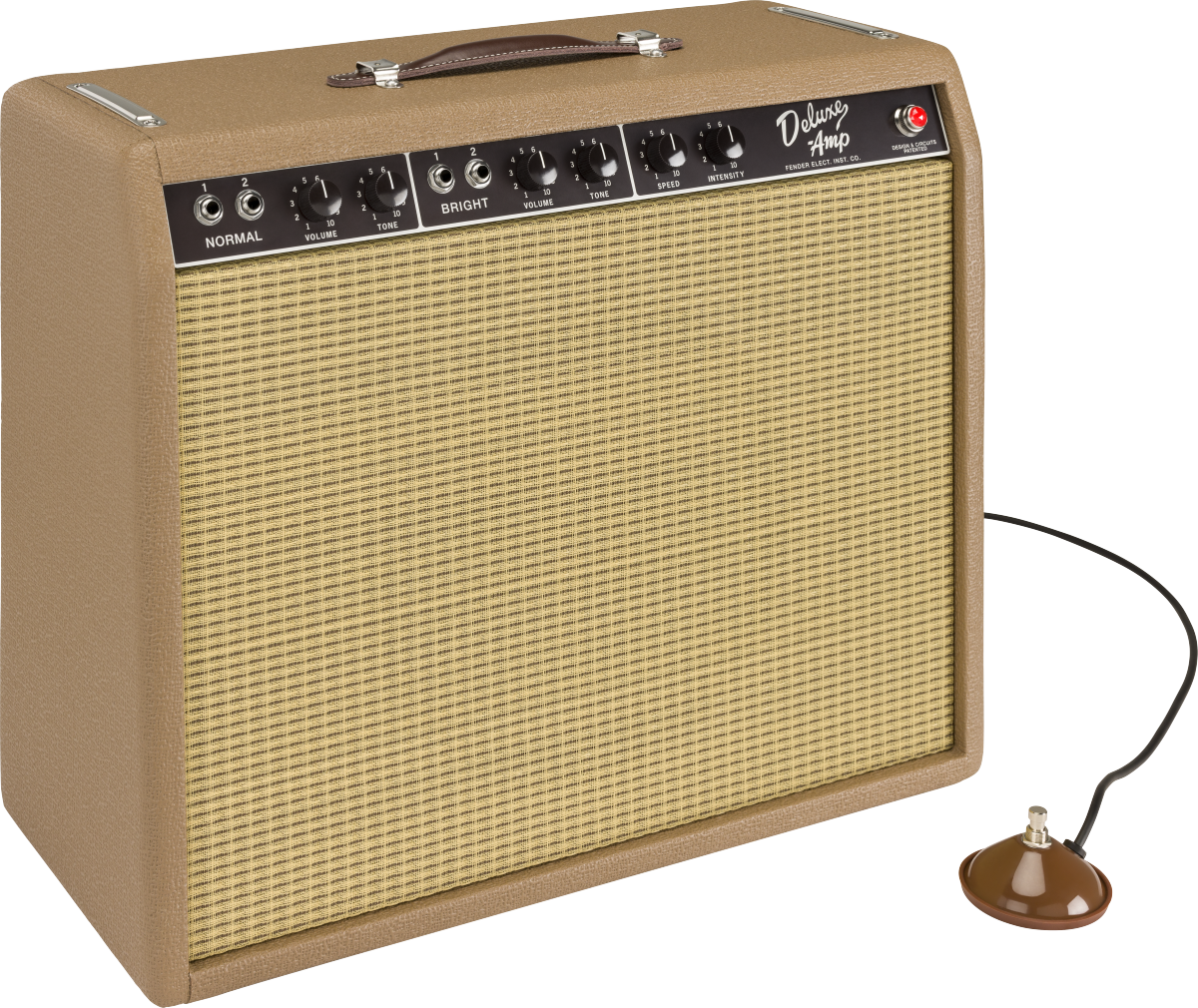

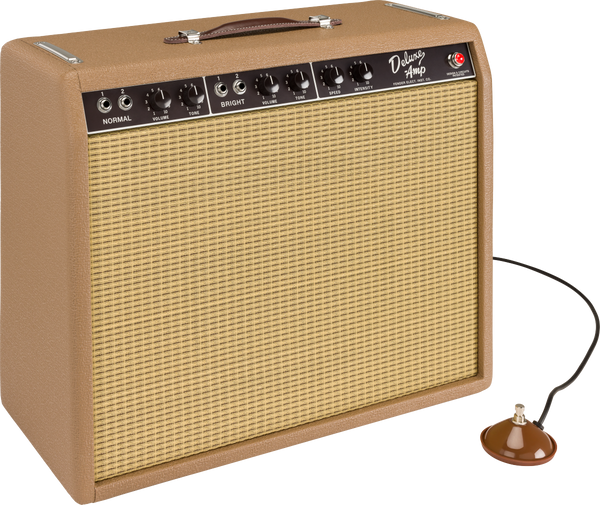

• Vintage-style brown single-button footswitch
• Fitted brown amp cover

Specs

General

• Series: American Vintage
• Color: Brown and Wheat
• Amplifier Type: All-Tube Combo
• Country of Origin: USA
• Power Output: 20 Watts

Electronics

• Channels:
  • Normal
  • Bright
• Inputs:
  • 4 x 1/4" (2 Normal, 2 Bright)

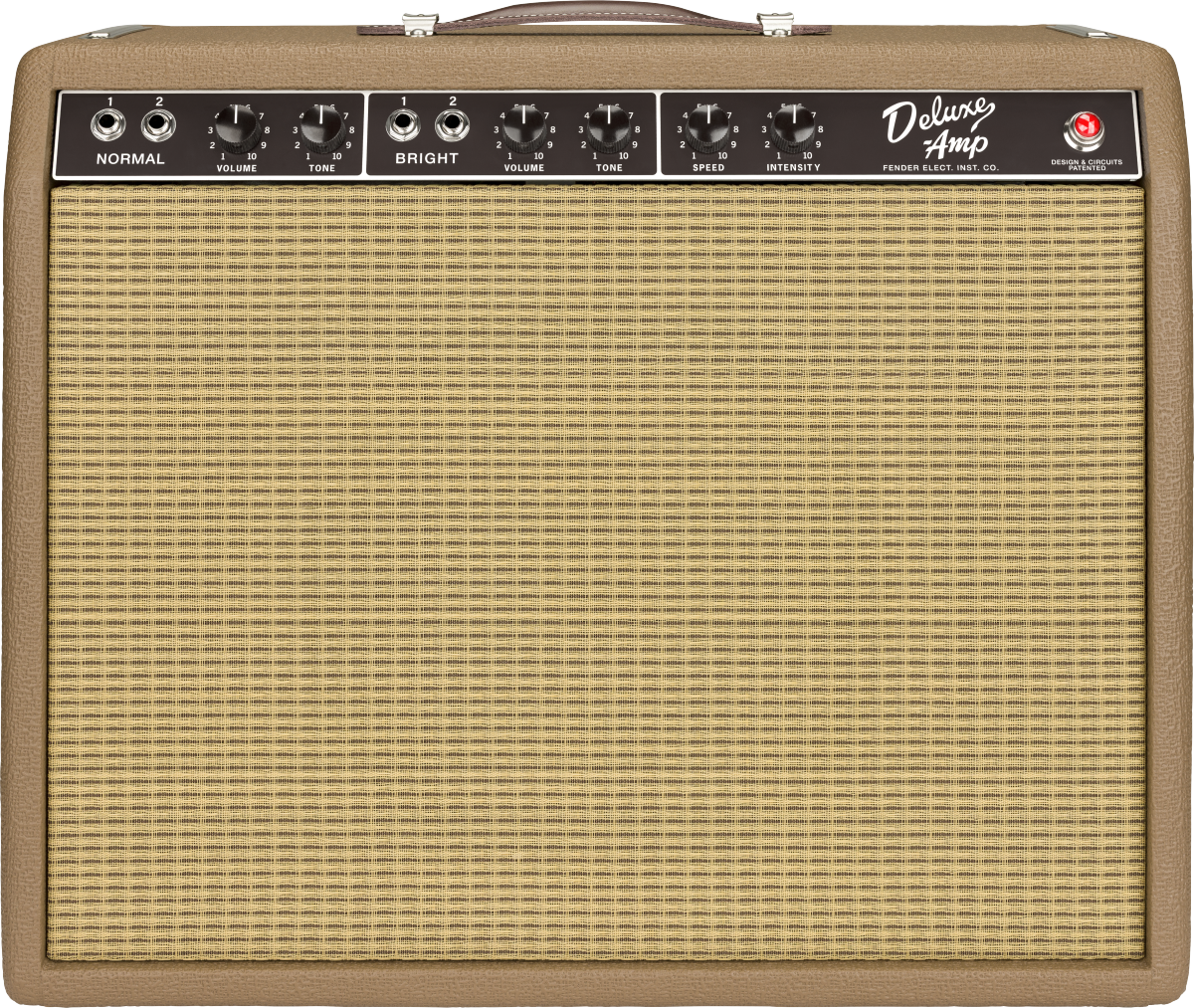

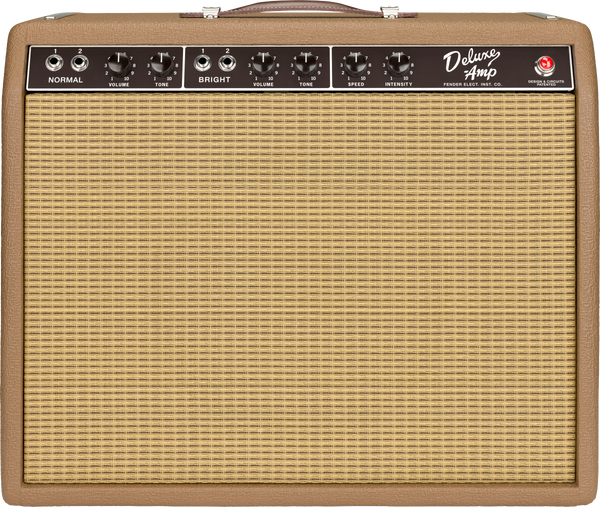

• Controls:
  • Normal Channel: Volume, Tone
  • Bright Channel: Volume, Tone
  • Vibrato Speed
  • Vibrato Intensity
• Effects:
  • Tube-Bias Tremolo
• Connection Type: 1/4"
• Voltage: 120V

Tubes

• Power Tubes: 2 × 6V6
• Preamp Tubes: 3 × 12AX7
• Rectifier Tube: 1 × 5AR4

Speaker

• Speaker:
  • 1 × 12" Celestion Custom Design
• Total Impedance:
  • 8 Ohms

Cabinet & Hardware

• Cabinet Material: Solid Pine
• Covering: Fender '60s Nubtex
• Grille Cloth: Wheat
• Handle: Brown Leather
• Control Knobs: Brown "Cupcake"
• Front Panel: Brown
• Amplifier Jewel: Red LED Jewel

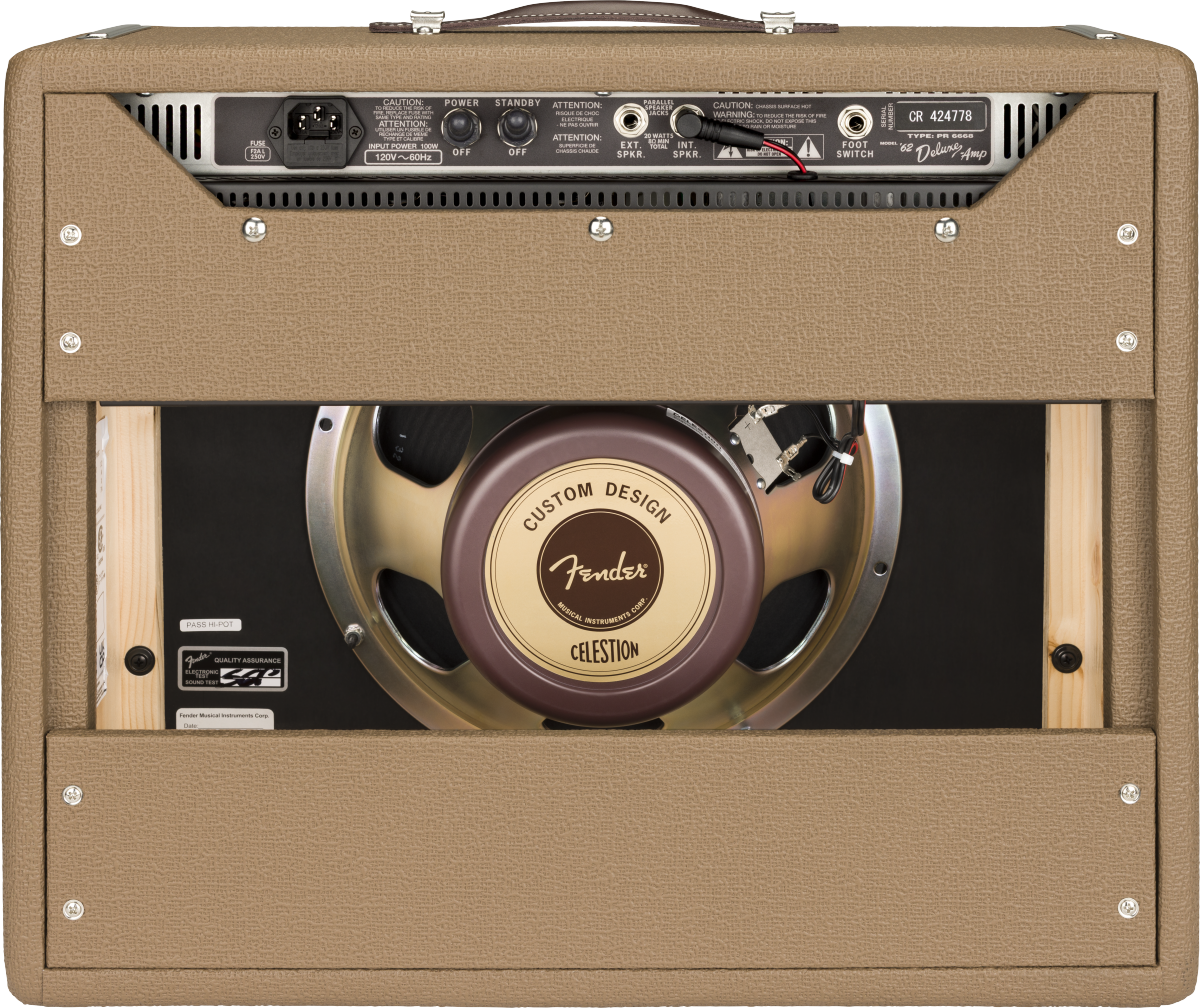

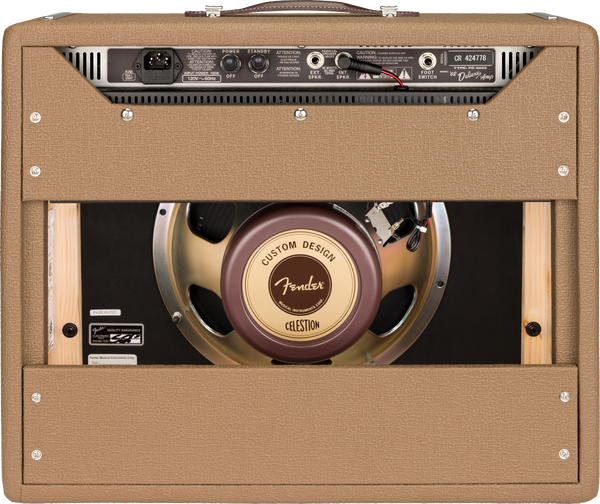

• Speaker Outputs:
  • Internal Speaker Jack
  • External Speaker Jack
  • Two parallel 1/4" outputs
