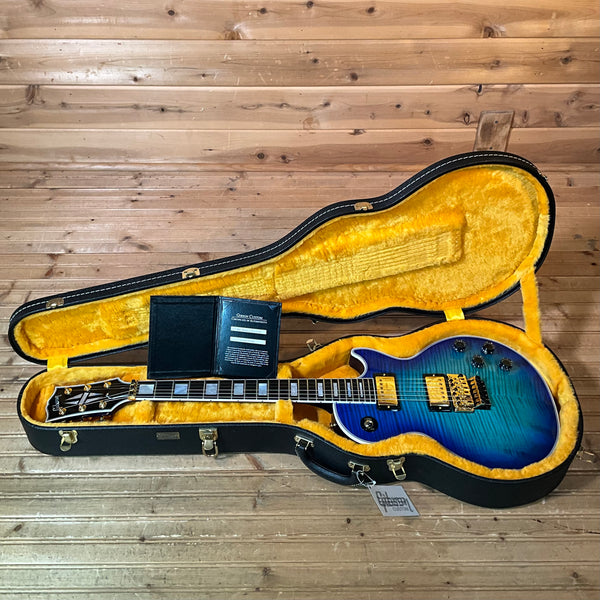

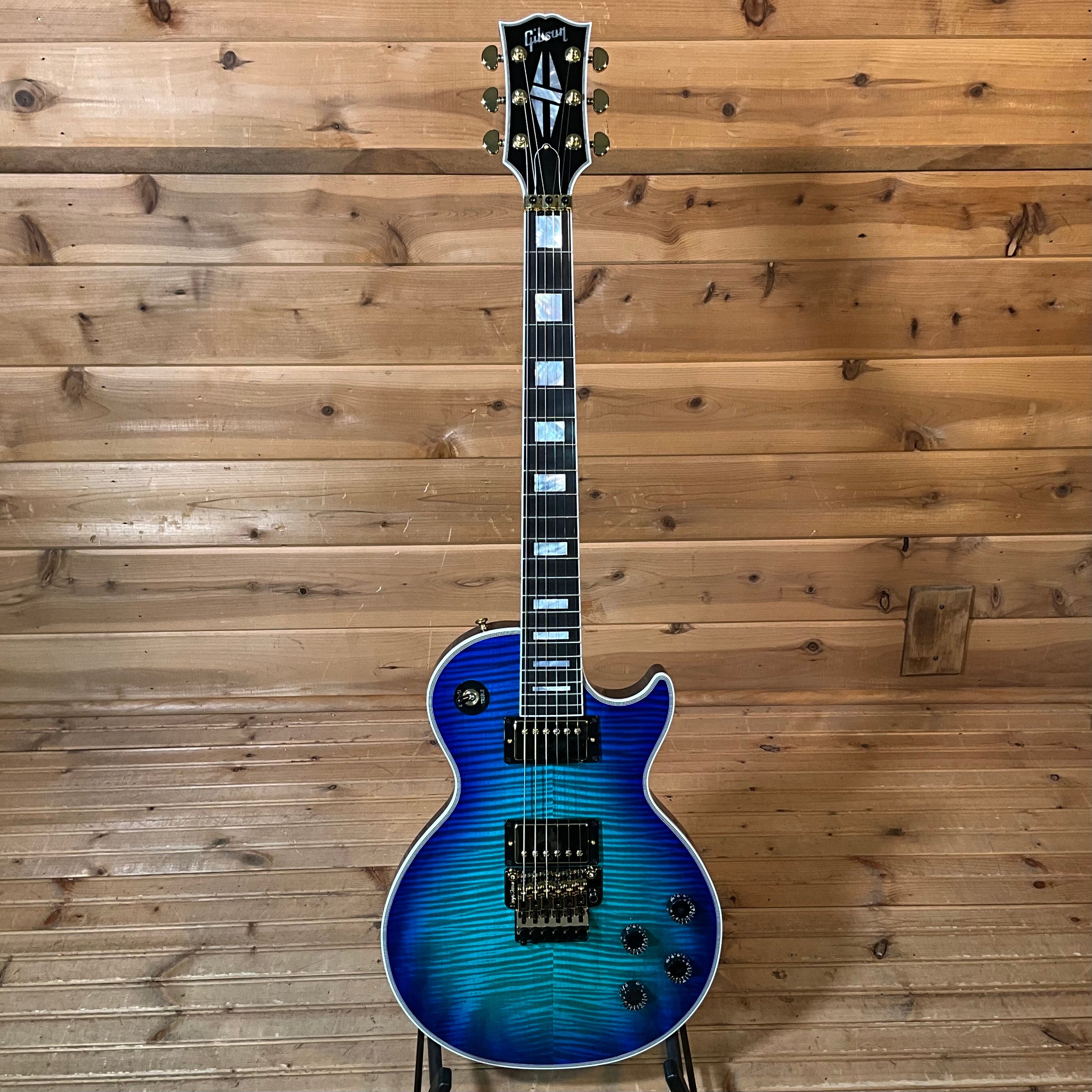

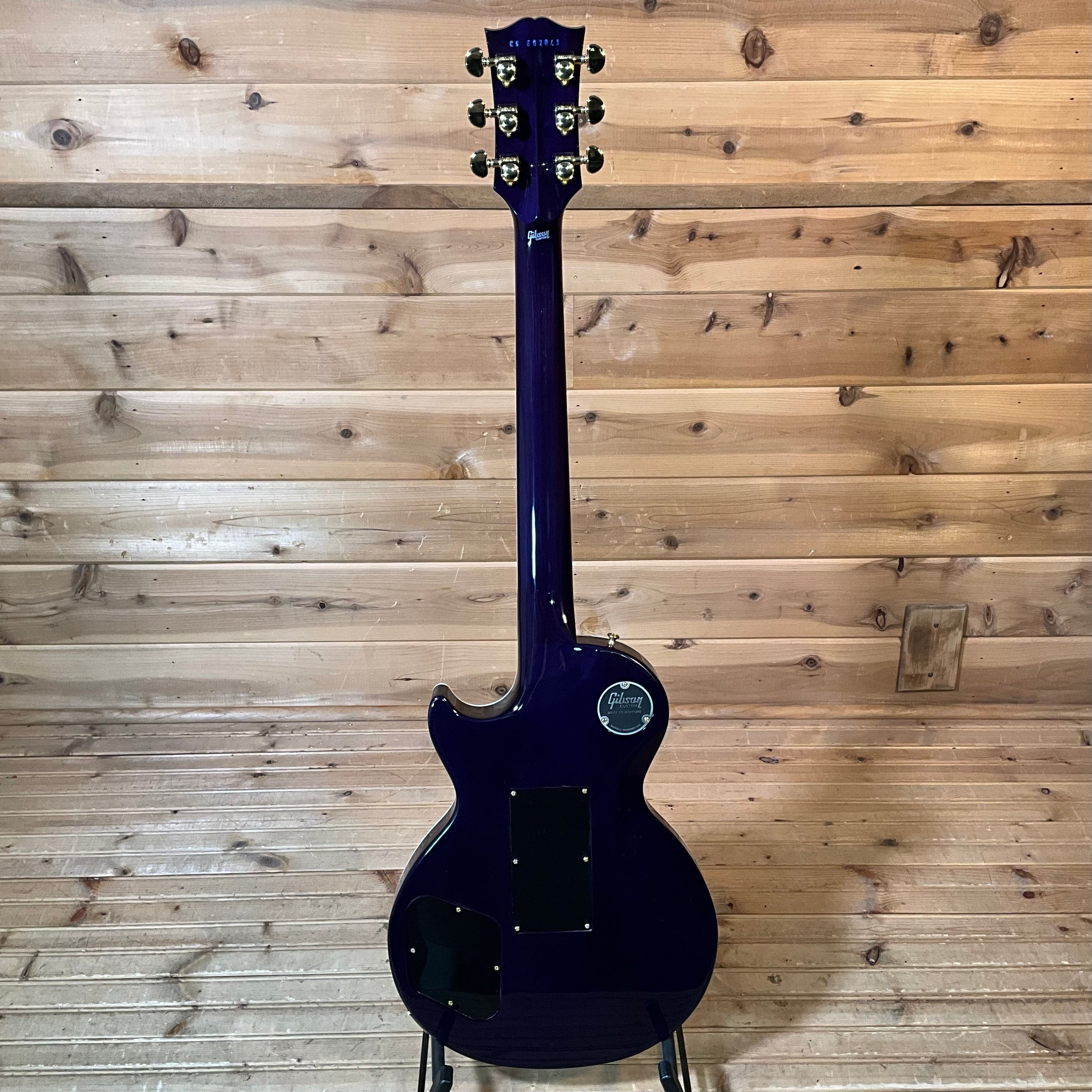

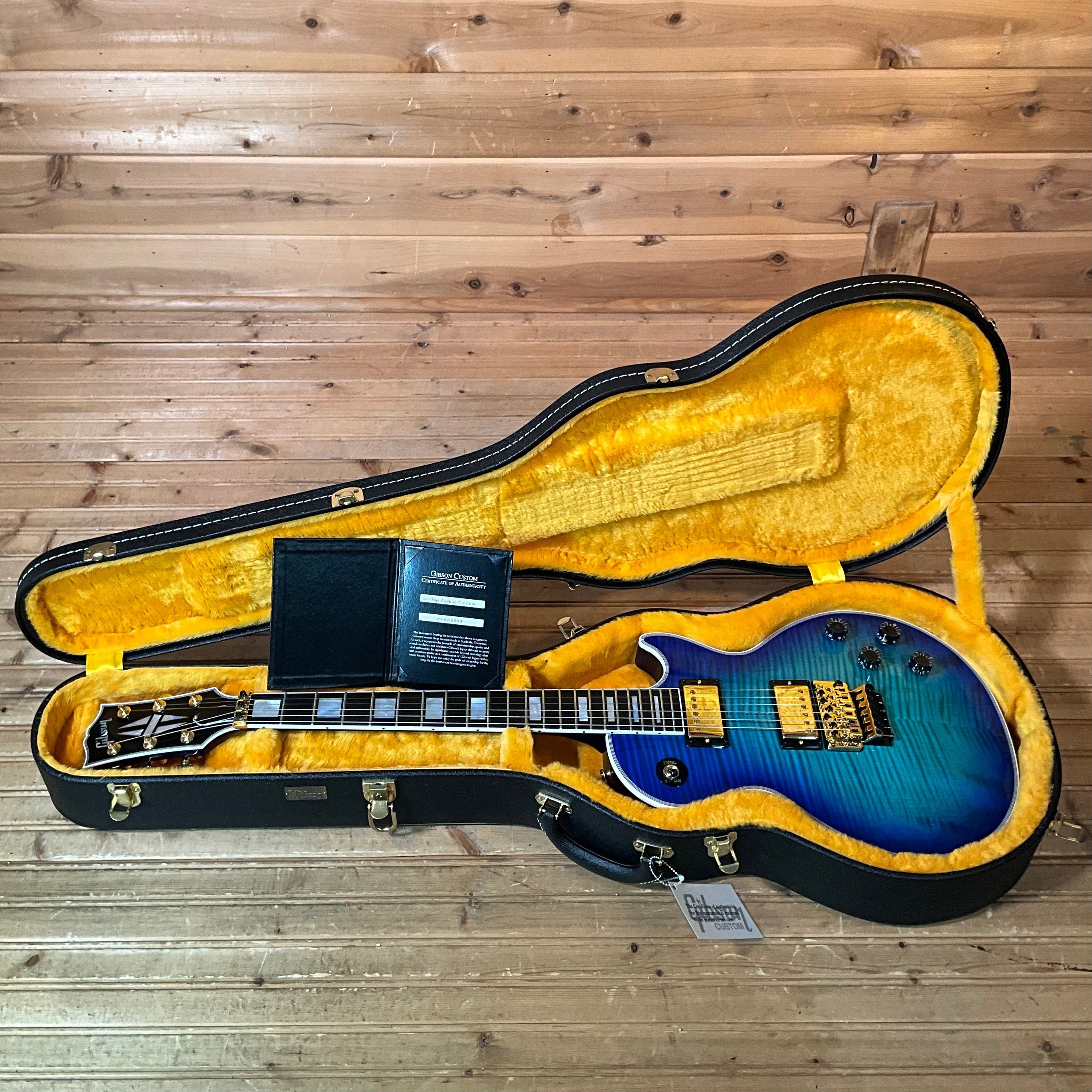

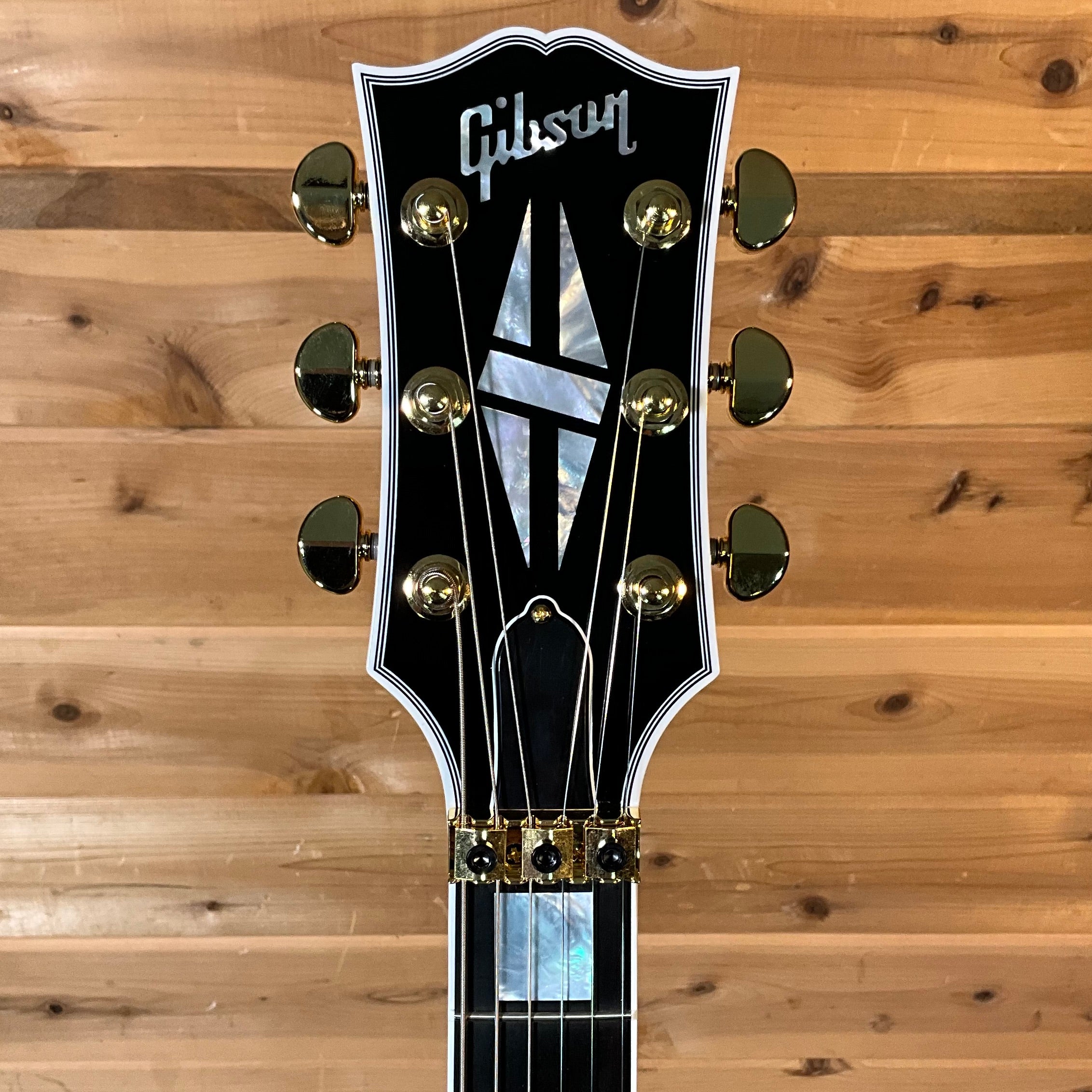

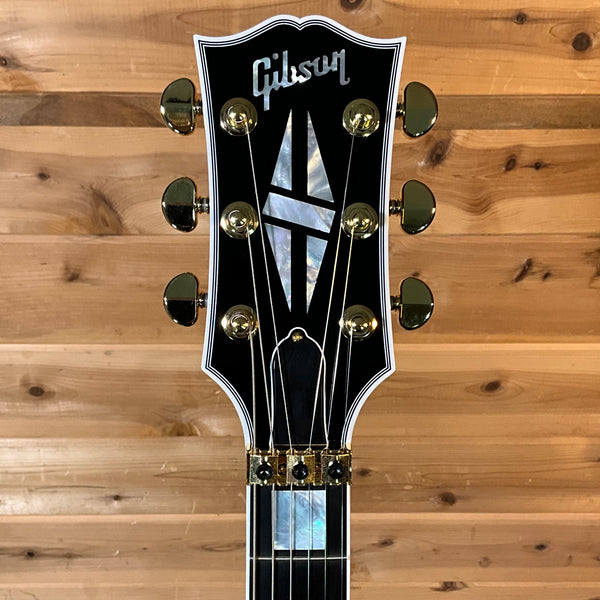

Gibson Custom Les Paul Axcess Custom Figured Electric Guitar - Translucent Blue

• Serial Number: CS602043
• Weight: 8.4 lbs

Specs

Neck

• Raw: NECK BLANK, MAHOGANY, 14 DEGREE.
• Head Veneer: HEAD VENEER, LES PAUL CUSTOM MODERN, FIBER
• Scale: 24 3/4"
• Truss Rod: TRUSS ROD ASSEMBLY, 18 1/2", MODERN TEFLON WRAPPED
• Neck Assy: NECK ASSY, LP AXCESS CUSTOM, APEX, FLOYD ROSE
• Neck Profile: LES PAUL AXCESS CUSTOM, APEX, FLOYD ROSE (0.835" / 0.980")
• Note: CONTOURED HEEL AND REINFORCED APEX HEADSTOCK

Fingerboard

• Raw: FINGERBOARD BLANK EBONY 1 PC
• Inlaid: FINGERBOARD INLAID 1PC EBONY TAPERED MOTHER-OF-PEARL BLOCK
• Fretwire: FRET WIRE, JESCAR FW45100 (MEDIUM-JUMBO-RESILIENT)
• Binding: BINDING WHITE .062
• Side Dots: SIDE DOT BLACK
• Assembly: FINGERBOARD ASSEMBLY LPC EBONY, BOUND, TAPERED PEARL BLOCK
• Nut: NUT, FLOYD ROSE LOCKING, GOLD

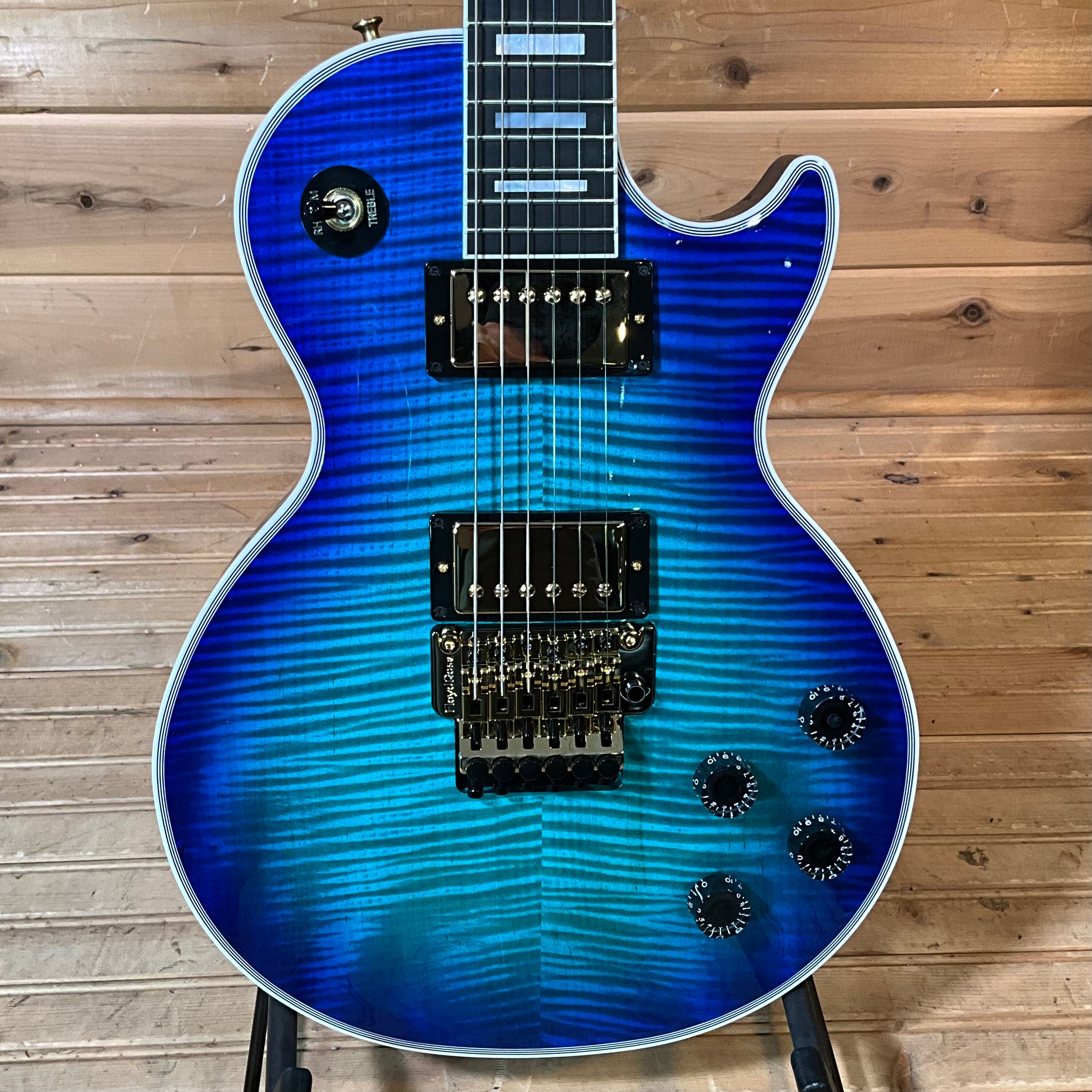

Body

• Raw: AAA MAPLE 2PC: HAND PICKED BY PAUL HUBER
• Back Raw: BACK, MAHOGANY, LP. 9-9.3-9.6-BELMUD [WEIGHT RELIEVED]
• Body Binding: BINDING 7-PLY B&W TOP (NO BACK BINDING)
• Body Assembly: BODY ASSY LP AXCESS CST FIGURED AAA TOP
• W.W. ASSY: WW ASSY LP AXCESS CST FIG AAA TOP FLOYD ROSE
• Note: LP AXCESS CST FIGURED AAA TOP CONTOURED HEEL
• Pickup Route: (LP XCST/STD, 2 HUMBUCKER, FLOYD ROSE, RH)

Finish

• Finish Type/Aging: GLOSS
• Finish - Top: TRANS BLUE
• Finish - Back: Cobalt
• Finish - Neck: Cobalt
• Finish - Rims: Cobalt
• Filler: WALNUT
• Coats of Antique: NONE
• Stinger: NONE
• Peg Head Face Color: BLACK (STANDARD)
• Window: NONE
• Decal(s): BACK OF PEGHEAD: DECAL, CUSTOM SHOP LOGO GOLD
• S/N: INK STAMPED, WHITE - CSXXXXXX

Hardware & Parts

• Hardware Finish: GLOSS
• Hardware Material: GOLD

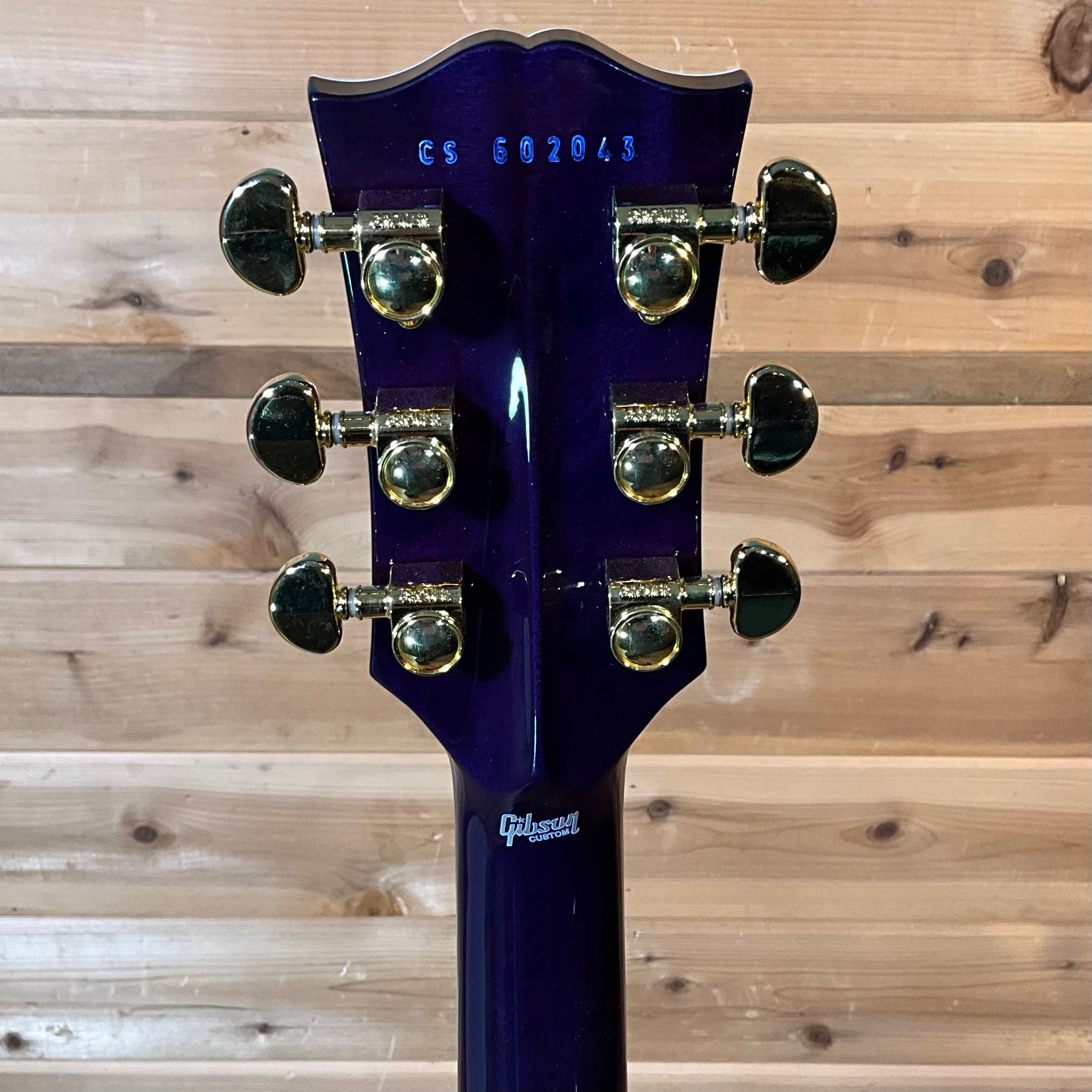

• Machine Head Bass: MHI GROVER, 102GKM (KEYSTONE), BASS, GOLD
• Machine Head Treble: MHI GROVER, 102GKM (KEYSTONE), TREBLE, GOLD
• Tailpiece: TAILPIECE FLOYD ROSE GOLD
• Tailpiece Stud: INCLUDED IN Tailpiece
• Tailpiece Anchor: INCLUDED IN Tailpiece
• End Pin: BRASS
• Pickguard: NONE
• Pickguard Bracket: NONE
• Truss Rod Cover: TRC FLOYD ROSE (CUT)
• Toggle Washer: SWITCHWASHER BLACK WITH GOLD HOT STAMP - NON TH
• Jack Plate: GOLD
• Control Plate: CONTROL PLATE, BLACK, LP NON-TH
• Switch Plate: HW / MEDALLION 50S CUSTOM "MADE TO MEASURE"

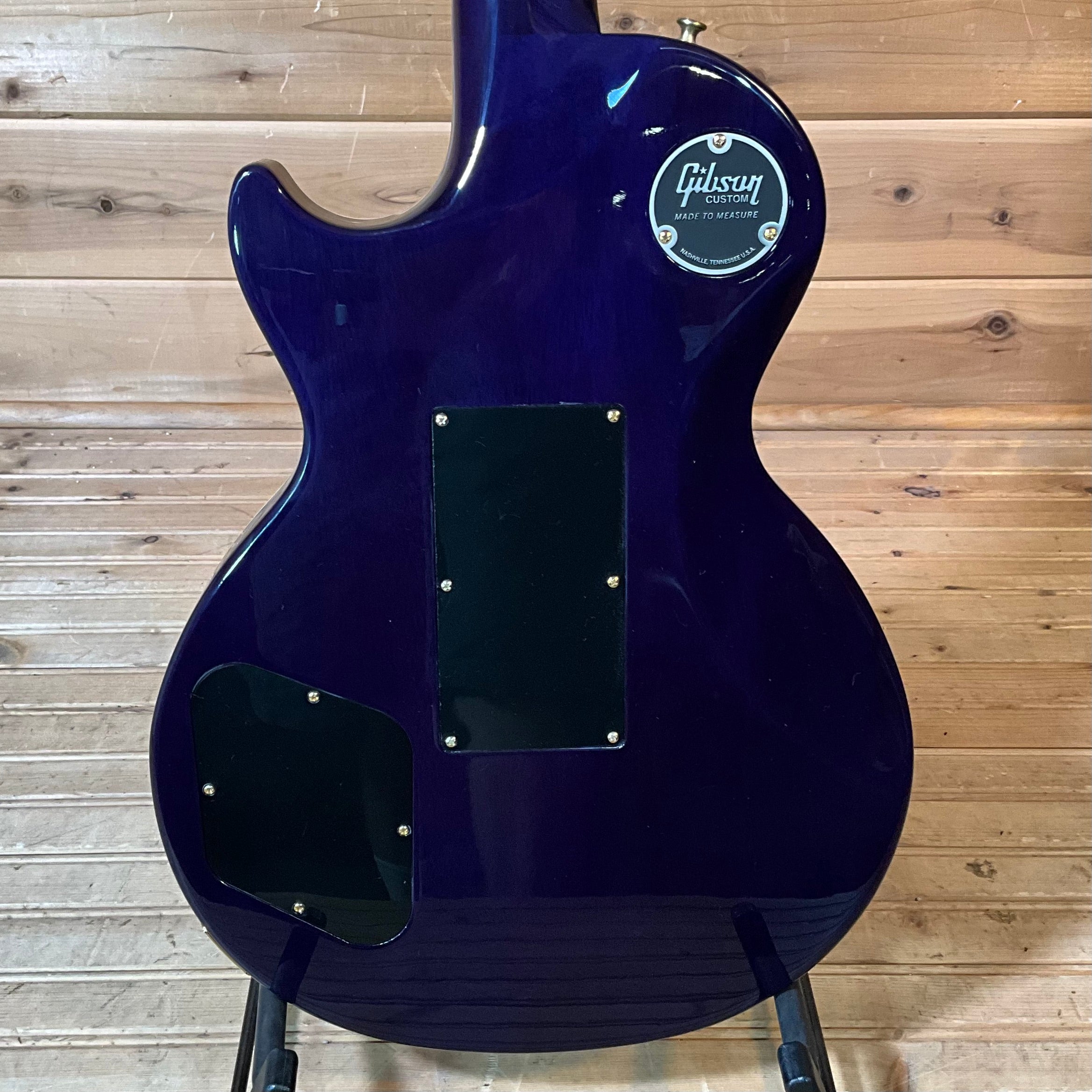

• Other: COVER FLOYD ROSE POCKET, 0.040" BLACK
• Other: BACKPLATE, FLOYD ROSE TREMOLO, 0.090" BLACK
• Strings: 0.010-0.046 GAUGE, STANDARD SET

Electronics

• C.P.A.: CPA ASSEMBLY LES PAUL AXCESS
• Toggle Switch: TOGGLE ASSEMBLY STUDIO/CONDUCTOR
• Toggle Tip: TOGGLE KNOB BLACK
• Neck P.U.: 496R 4-CONDUCTOR, 13.5" GPC MMBR
• Middle P.U.: None
• Bridge P.U.: 498T 4-CONDUCTOR, 12.5" GPC MMBR
• Knobs: KNOB BLACK SPEED
• Dial Pointers: N/A
• Capacitor: CAPACITOR 0.022uF 100V 20%
• Push/Pull: PUSH/PULL POTS, TONE
