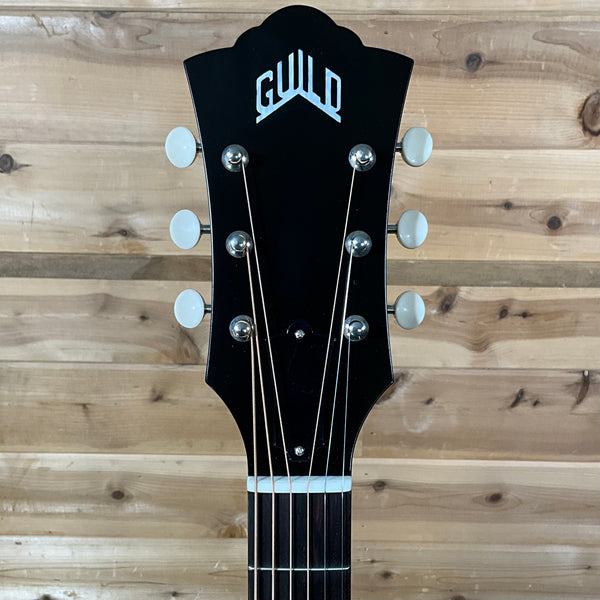

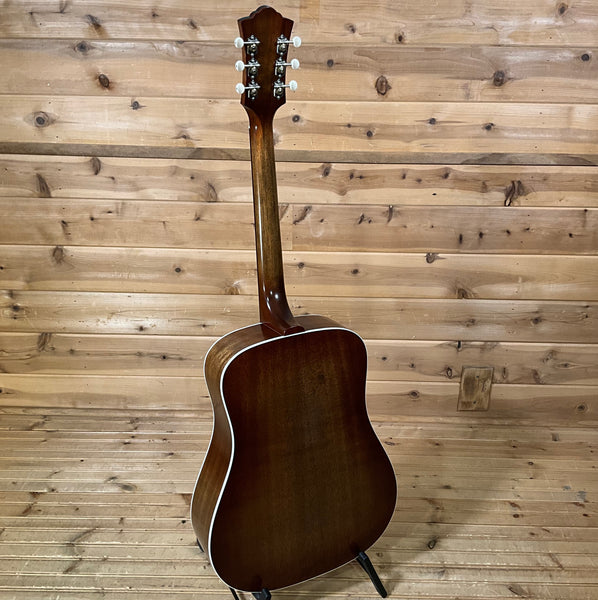

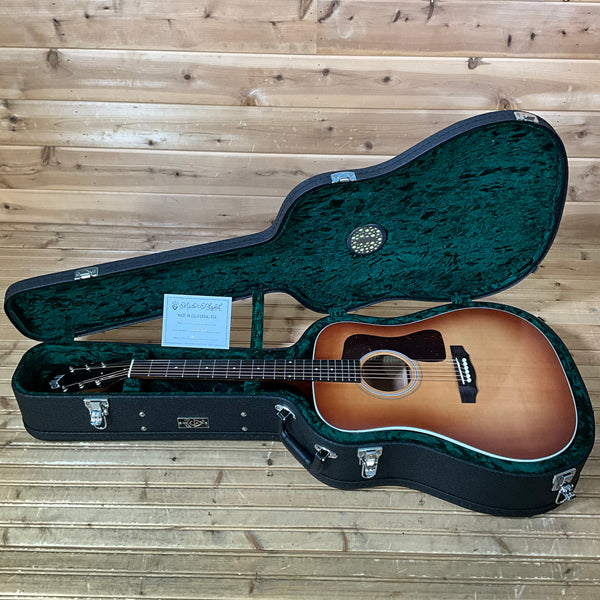

Guild D-40 Acoustic Guitar - Pacific Sunset Burst

Guild

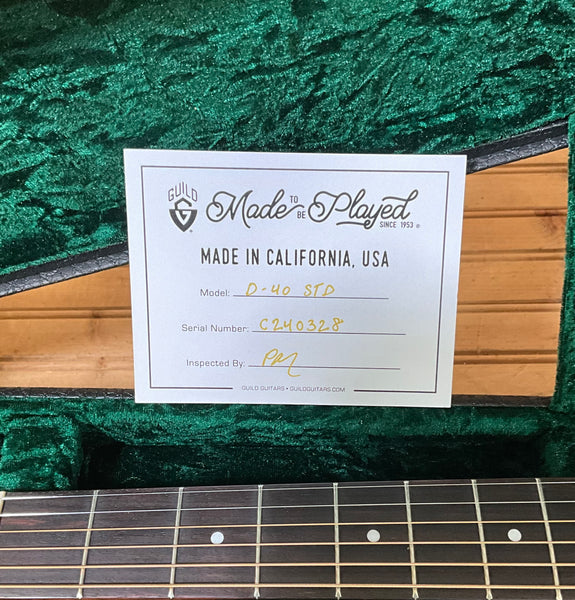

The D-40 is perfect for players looking for that ultimate dreadnought sound. The classic wood combination of a solid Sitka spruce top and solid African mahogany back and sides provides remarkable volume, clarity and sustain. The D-40 features an East Indian rosewood bridge and fingerboard, premium 20:1 open-gear tuners, and a hand-cut bone nut and saddle. An elegant and thin satin varnish finish gives this guitar its familiar broken-in look and feel, while allowing the tone woods to reach their optimal sonic potential. The D-40’s timeless appointments include a vintage style rosette, tortoiseshell pickguard, white ABS binding, and Guild’s peak logo inlaid on the headstock. Each D-40 comes with a hand-signed, numbered certificate of authenticity, and ships with a Guild archtop wood case with a built-in Humicase® humidification system. Finish options include satin varnish in Natural, or Antique Burst with Cabernet back, sides and neck. A discreet, USA-made LR Baggs Element VTC pickup is also available (D-40E).

  • Serial Number: C240328
  • Weight: 4.4 lbs
Body
Body Shape D - Dreadnought
Body Top Solid Sitka Spruce
Top Bracing Pattern Scalloped X
Soundhole Diameter 3 7/8" (98mm)
Rosette ABS Ring
Top Purfling Inlay Black and White ABS

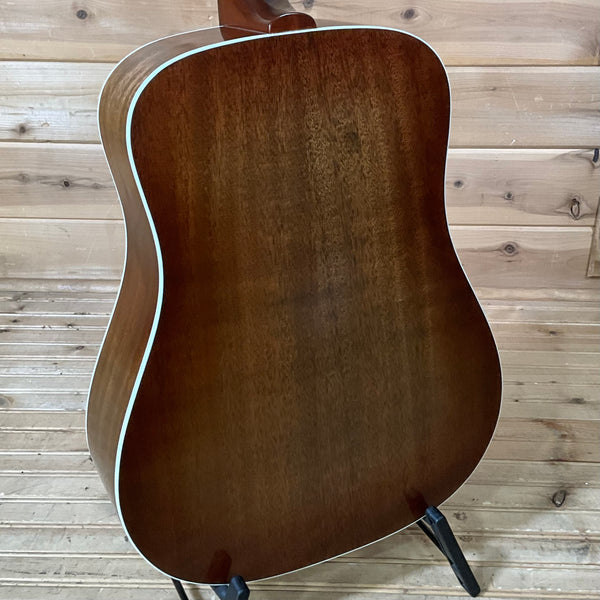

Body Sides Solid African Mahogany
Body Back Solid African Mahogany
Body Binding White ABS
Neck
Neck Material Mahogany
Scale Length 25 5/8" (651mm)
Neck Shape C Shape
Nut Width 1 11/16" (43mm)
Neck Thickness 1st Fret 21mm
Neck Thickness 9th Fret 22.5mm
Truss Rod Dual Action
Truss Rod Wrench 8 mm Allen Key
Fingerboard Material Indian Rosewood
Fingerboard Radius 12" (305mm)
Fingerboard Inlays 5mm Dots - Pearloid
Frets Total 20
Fret Type Jescar 43080
Finish
Color Pacific Sunset Burst (PSB)
Finish Vintage Gloss Nitrocellulose Lacquer
Hardware
Bridge Material Indian Rosewood
Bridge String Spacing 2 1/8" (54mm)
Bridge Pins Ivory Colored Plastic
Saddle Material Compensated Bone
Hardware Finish / Plating N/A
Nut Material Bone
Tuning Machines Guild Deluxe Vintage Open Gear
Endpin Ivory Colored Plastic
Pickguard Tortoiseshell
Electronics
Electronics N / A
Other
Strings D'Addario EXP16 - Coated Phosphor Bronze Light (.012 - .053)
Included Case Guild Deluxe Humidified Wood Case
Upper Bout Width 11 5/8" (295mm)
Lower Bout Width 16" (406mm)
Body Depth Upper Bout 4" (101mm)
Body Depth Lower Bout 5" (127mm)
Body Length 20" (508mm)
Overall Length 41 3/4" (1061mm)
