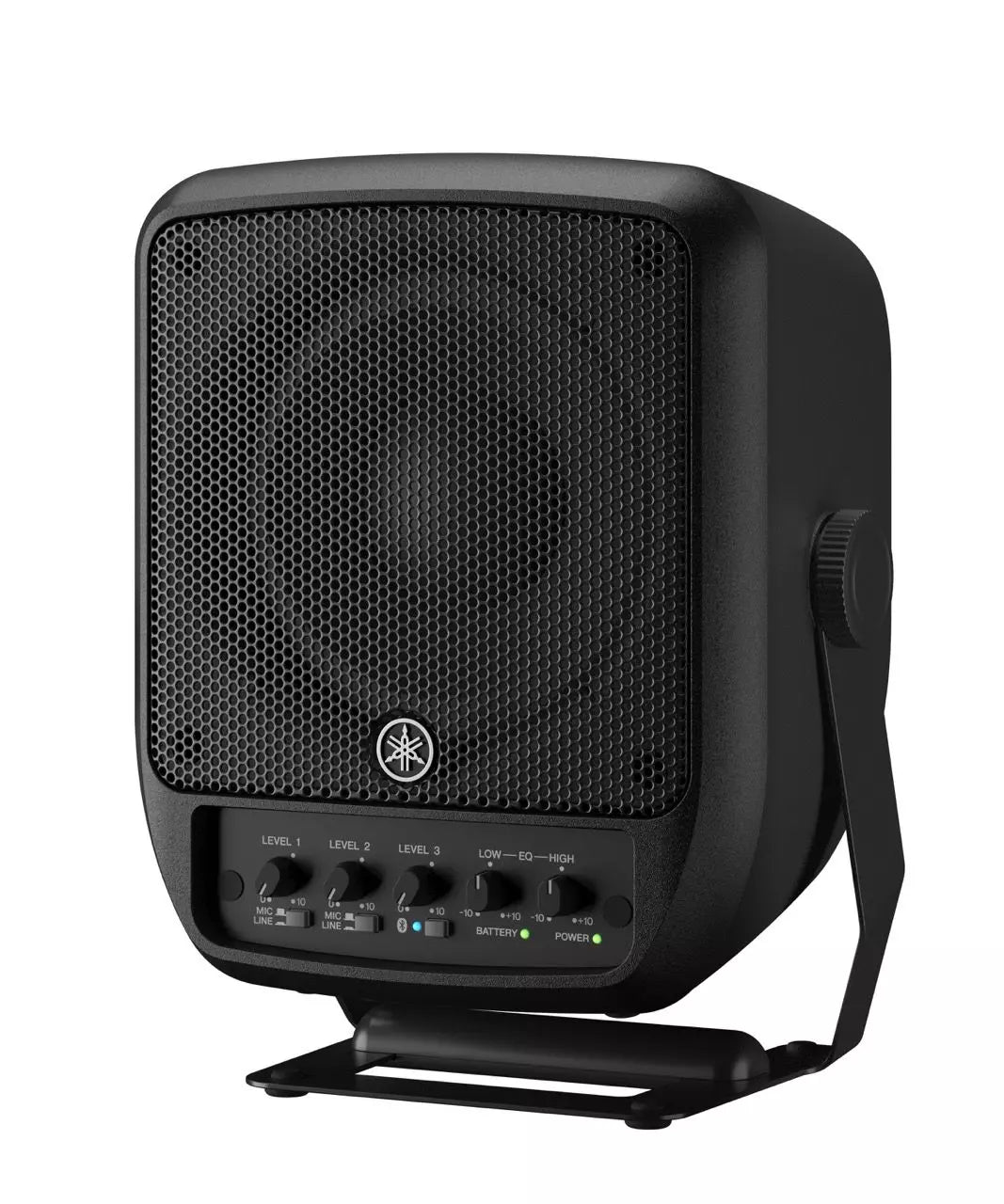

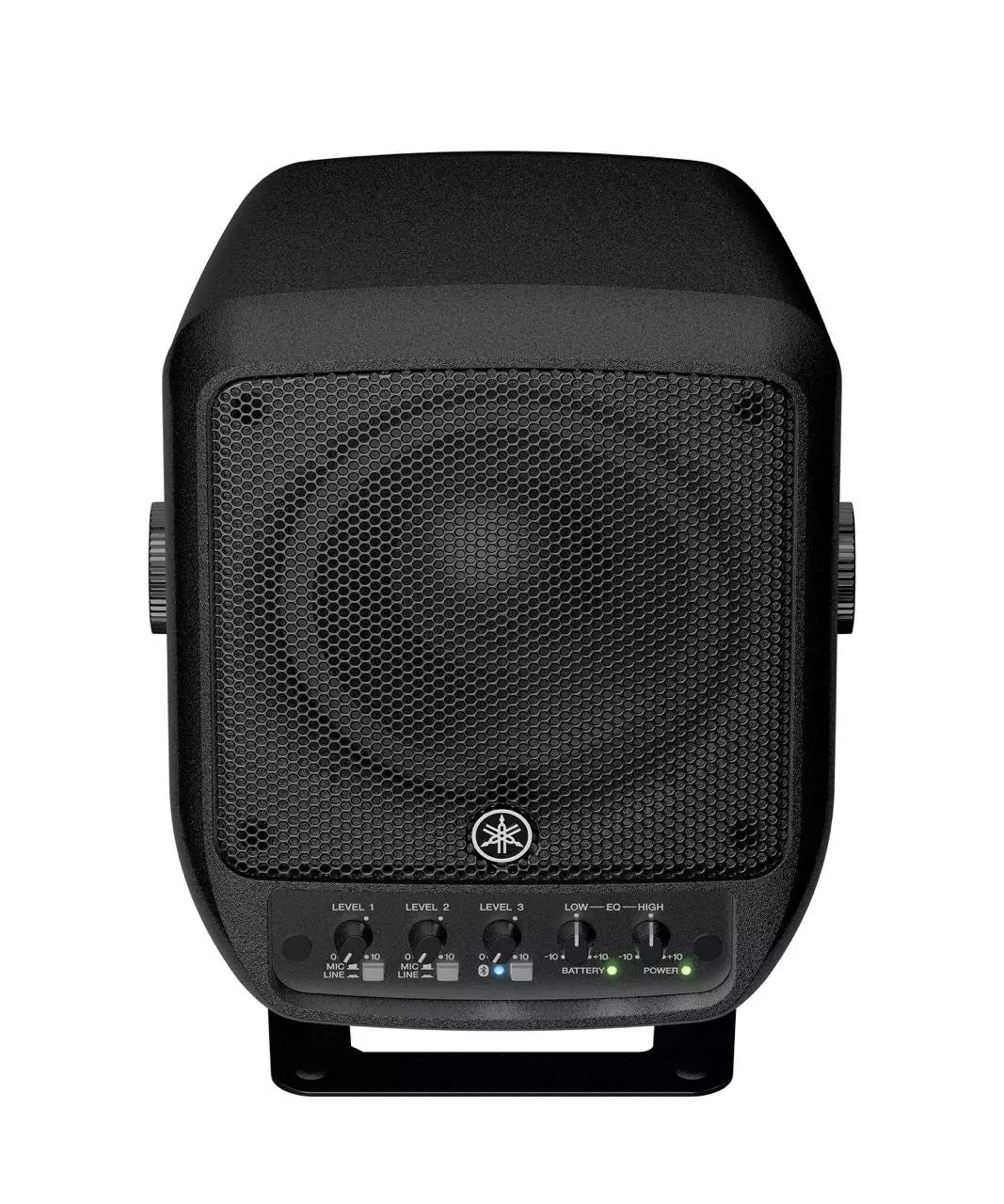

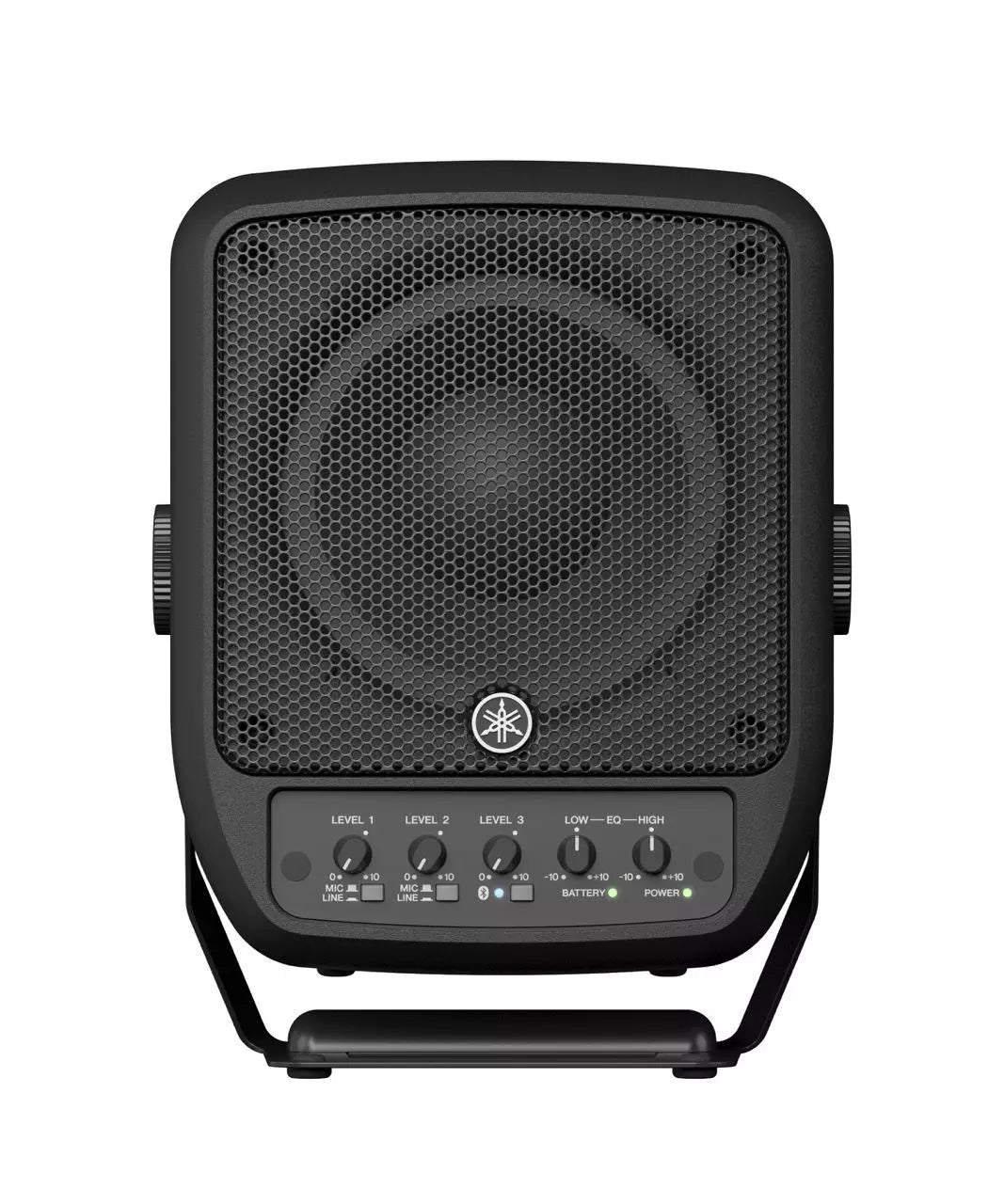

The STAGEPAS 100BTR portable PA system strikes a perfect balance between high-quality sound and ultimate portability, allowing you to turn virtually any location into your own intimate live stage. Available in two versions, one with a battery and one without, the lightweight, durable design, effortless operation, and astonishing sound of the STAGEPAS 100BTR will help you reach your audience like never before.
Portable PA system equipped with a 100 W power amp, coaxial compression driver with 1.4” voice coil HF and 6.5” cone LF, a 3-channel mixer, and internal lithium-ion battery
- 100 W Class-D amplifier
- 1.4” HF + 6.5” LF high-quality coaxial compression driver using a FIR filter for the crossover
- 3-channel mixer (2 monaural mic/line + 1 line)
- Equipped with a 2-band master EQ
- Compatible with Hi-Z input (Channel 2 only)
- Equipped with mix-out

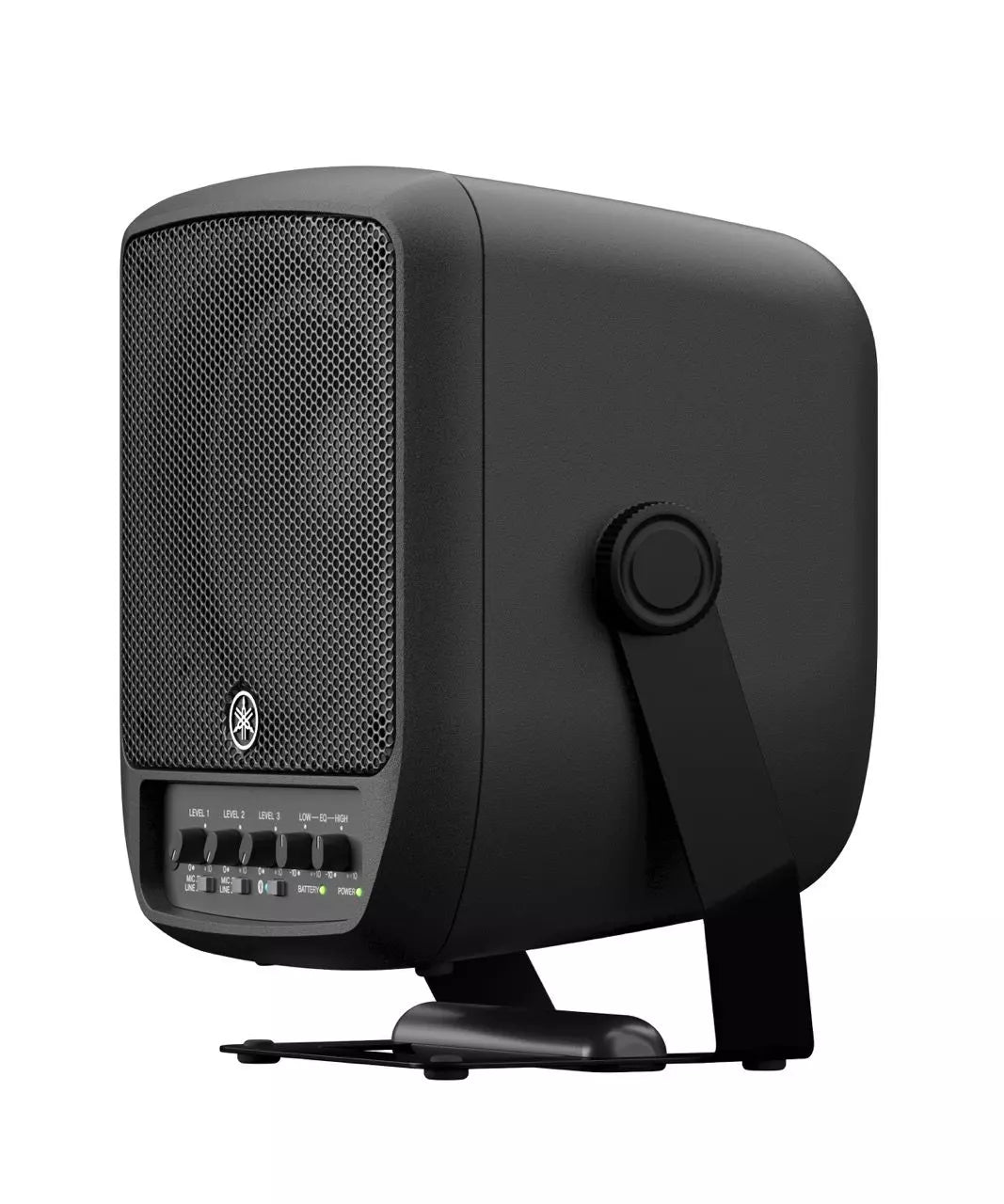

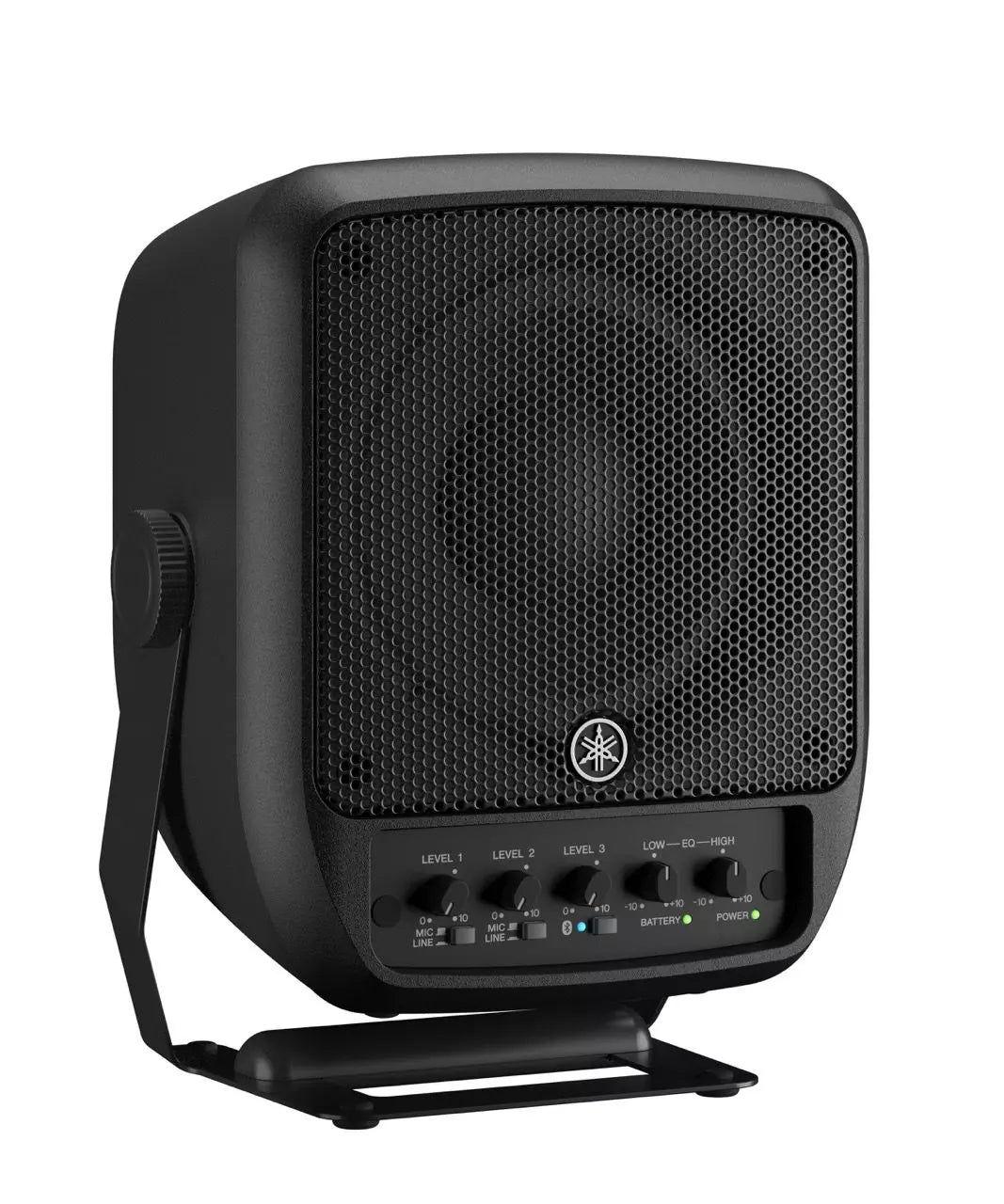

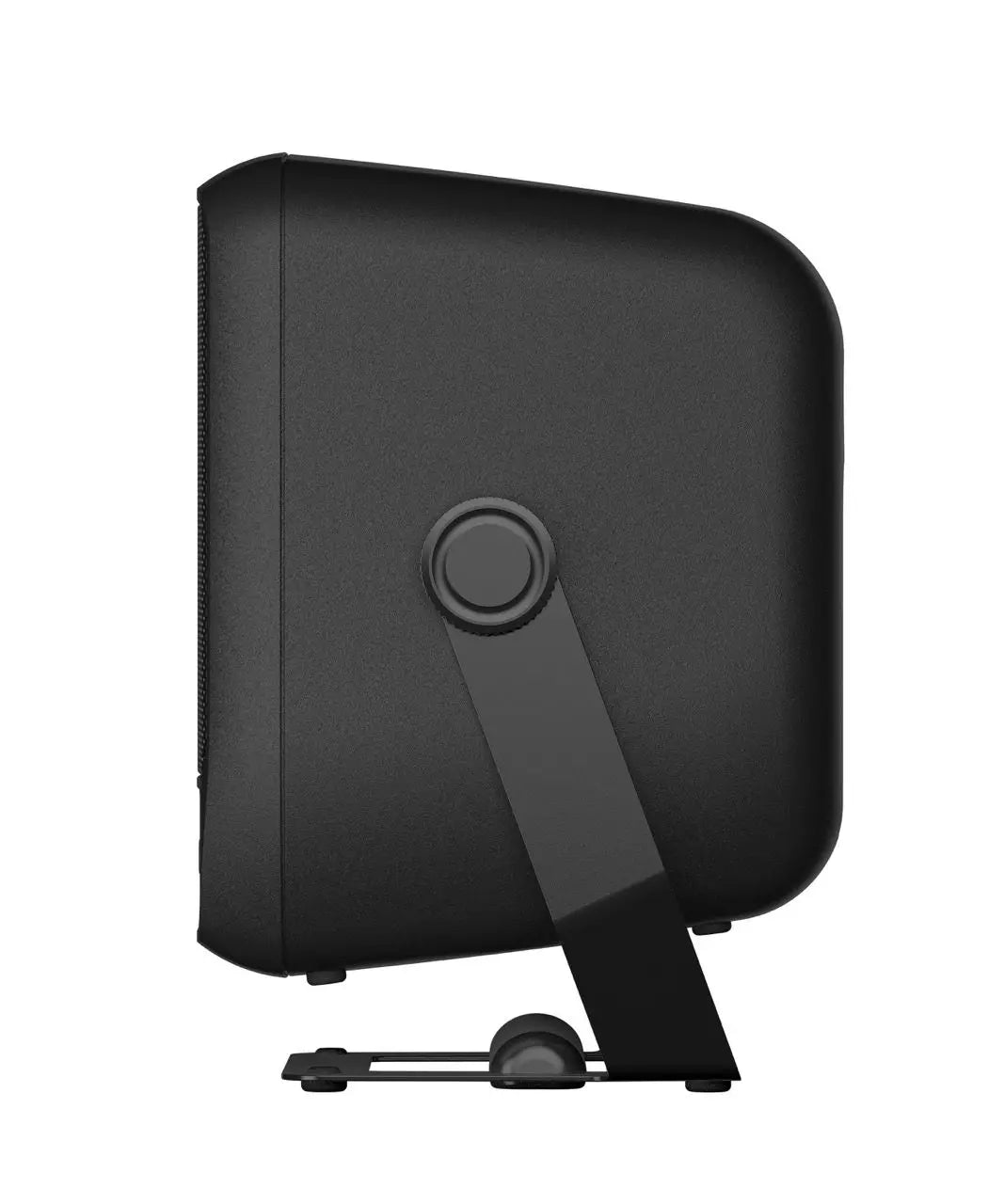

- Carrying handle doubles as an adjustable stand
- Compatible with audio accompaniment over Bluetooth
- Optional carrying bag (BAG-STP100) available for convenient transport
- Internal lithium-ion battery
Specs
| 2-way Bi-amp Powered Speaker with mixer |

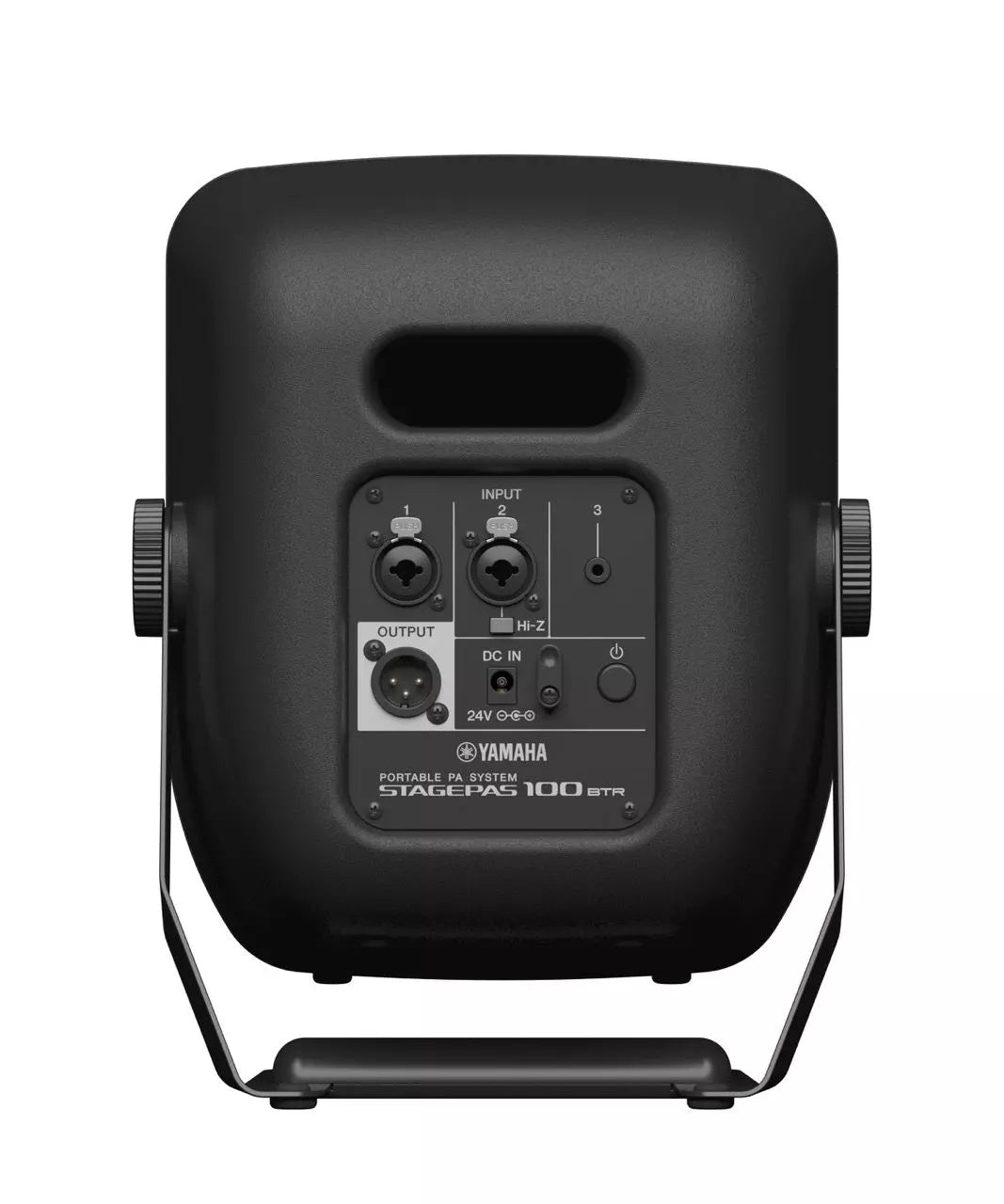

| Inputs |
INPUT 1: Combo (mic/line), INPUT 2: Combo (mic/line), INPUT 3: Stereo Mini x1 (line) |
| Outputs |
OUTPUT: XLR3-32 (INPUT 1-3 mix) |
| Bluetooth |
Ver.5.0, A2DP (SBC, AAC), Class 1 |
| Mixing channels |
3 |
| Input channel functions |
Hi-Z: CH2 |
| Output channel functions |
2 Band EQ |
| Coaxial speaker with compression driver |
Maximum output level (1m; on axis)
| LF |
6.5" Cone, 1.7" voice coil |
| HF |
1" throat compression driver, 1.4" voice coil |
| Dynamic |
100 W (LF: 93 W, HF: 7 W) |
| Natural convection (no fan) |
| 10 W (Idle), 30 W (1/8 power) |
| Type |
Rechargeable Lithium ion battery pack |
| Capacity |
60 Wh |
| Operating Time |
Maximum 6 hours, 1/16 power continuous 5 hours |
| Charging Time |
Approx. 2.5 hours |

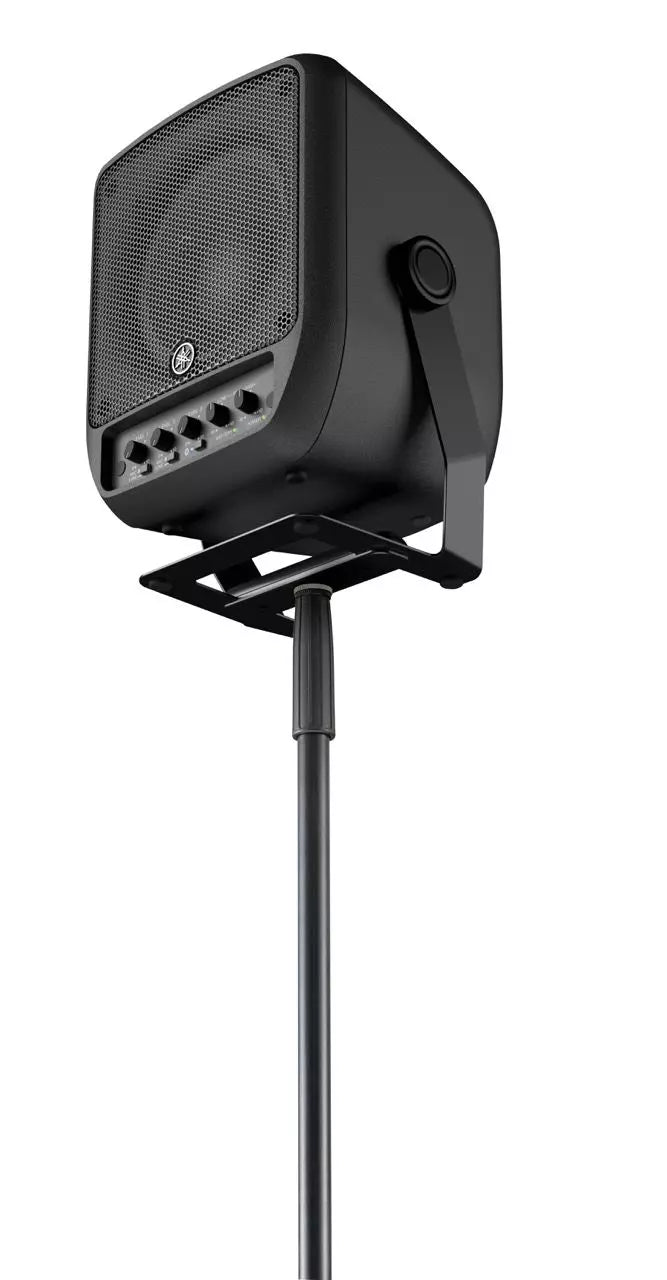

Flying and mounting hardware
| 1 × 3/8", depth 12 mm (center of handle) |
| 239 x 310 x 215 mm (9.5" x 12.3" x 8.5"), with handle |
| 5.5 kg (12.1 lbs), without AC adaptor |
| Power cord x 1, AC adaptor (PA-500) x 1 |
